Advance Lifts DP Series 40 Inch Container Dumper
Advance Lifts DP Series 40 Inch Container Dumper
SKU:CON-304dd9
Efficient and space-saving 40-inch container dumper with 4000 lb capacity, adjustable retaining bar, and UL-listed controllers.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
Advance Lifts DP Series 40 Inch Container Dumper
$6,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series 40 Inch Container Dumper
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

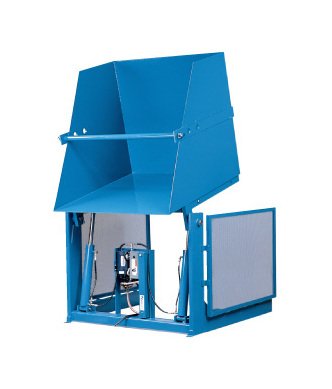

The Advance Lifts DP Series 40 Inch Container Dumper is designed for efficiency and space optimization, tilting up to 125 degrees. With a 4000 lb capacity, this dumper features a 40-inch carriage width, 33-second speed, and a 99-inch arc height. It's equipped with special features such as an adjustable retaining bar, machine-grade single-acting cylinders, UL-listed controllers, and more. Made in the USA, this dumper is ideal for handling various materials and can be customized to specific requirements.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

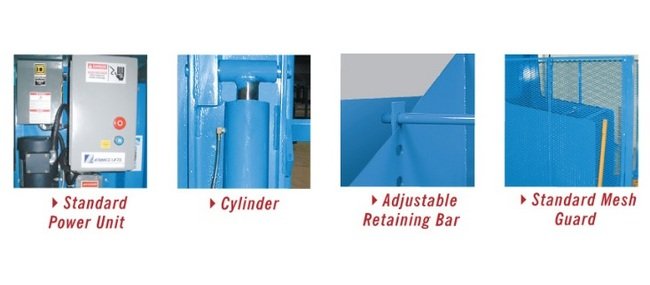

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

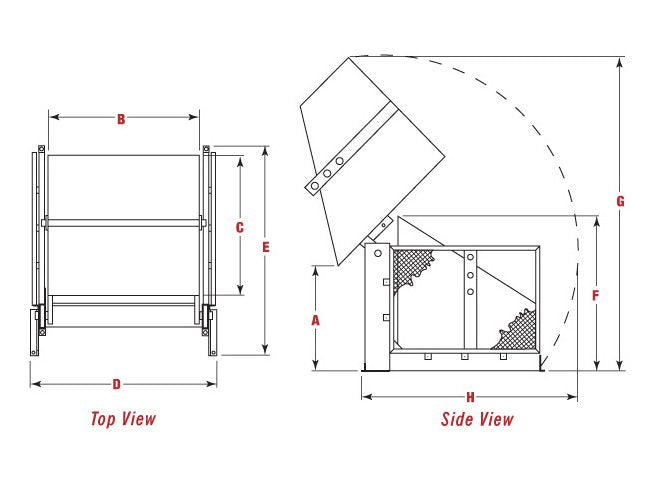

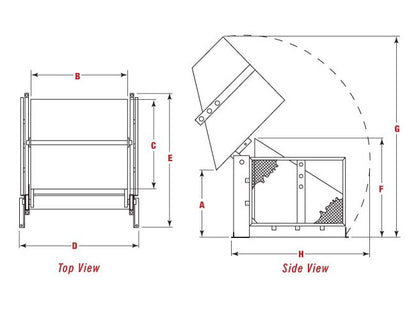

Specifications Approximate Weight
1040 lb
Specifications Arc Height G
99 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
53 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
40 in
Specifications Dump Height A
36 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
58 in
Specifications Overall Width D
53 in
Specifications Series
DP
Specifications Speed
33 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
70 in
