Advance Lifts DP Series 40" Standard Container Dumper
Advance Lifts DP Series 40" Standard Container Dumper
SKU:CON-9c7ac6
Efficient and reliable Advance Lifts DP Series 40" Standard Container Dumper with 2000 lb capacity and ISO 9001:2015, UL certifications.
Regular price
$6,199.99
Regular price
Sale price
$6,199.99
Unit price
per
Initiate Order
Advance Lifts DP Series 40" Standard Container Dumper
$6,199.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series 40" Standard Container Dumper
$6,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

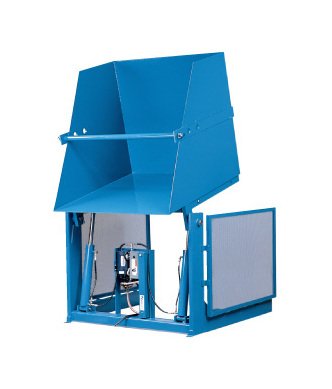

The Advance Lifts DP Series 40" Standard Container Dumper is an efficient solution for diverse dumping needs. With a 2000 lb capacity and 128" Arc Height (G), this dumper offers versatile applications for various industries. Engineered to meet ISO 9001:2015 and UL standards, it ensures reliability and durability. Featuring a compact design, adjustable retaining bar, and single-acting cylinders, this dumper optimizes space while maintaining high performance. Add-on options like stainless steel carriage, custom controls, and shock absorbers enhance its flexibility to meet specific requirements. Made in the USA with a 10-year warranty, this dumper guarantees long-term efficiency and value.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

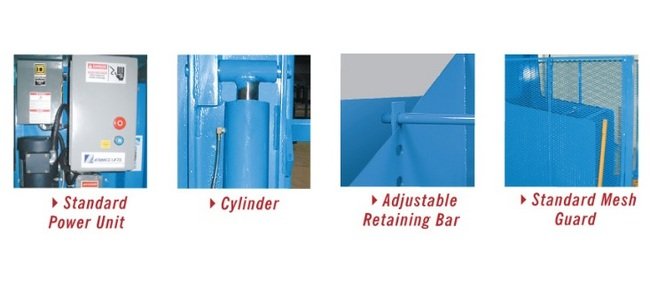

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

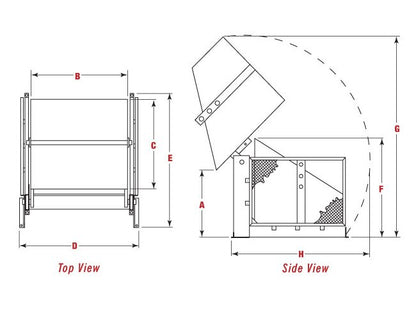

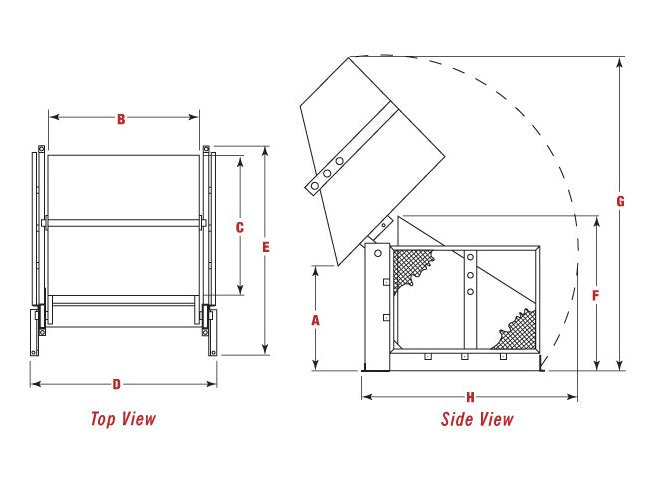

Specifications Approximate Weight
1055 lb
Specifications Arc Height G
128 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
65 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
40 in
Specifications Dump Height A
48 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
70 in
Specifications Overall Width D
53 in
Specifications Series
DP
Specifications Speed
25 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
87 in
