Advance Lifts DP Series 52-Inch Container Dumper
Advance Lifts DP Series 52-Inch Container Dumper
SKU:CON-0e913e
Compact and powerful 52-Inch Container Dumper by Advance Lifts, compliant with industry standards. Customize for optimal performance.
Regular price
$8,950.99
Regular price
Sale price
$8,950.99
Unit price
per
Initiate Order
Advance Lifts DP Series 52-Inch Container Dumper
$8,950.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series 52-Inch Container Dumper
$8,950.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

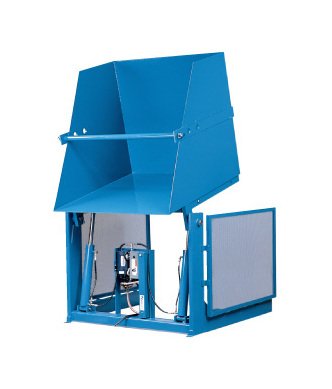

The Advance Lifts DP Series 52-Inch Container Dumper is expertly designed to provide maximum efficiency in container dumping operations. With a compact footprint and sturdy construction, this dumper can handle up to 2000 lbs with ease. Featuring adjustable retaining bars, machine-grade single-acting cylinders, and durable chrome-plated components, this dumper ensures reliable performance. It complies with industry standards including ISO 9001:2015 and UL listings, making it an ideal choice for various applications. Customize with optional accessories like stainless steel carriage or epoxy paint finishes.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

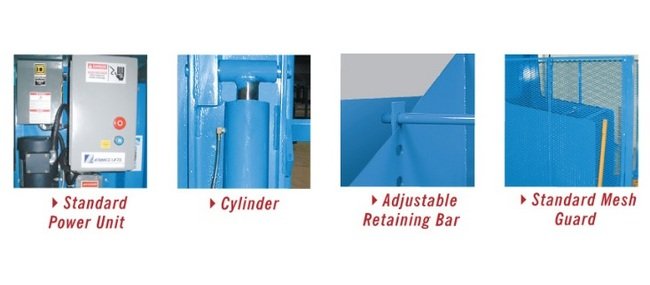

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

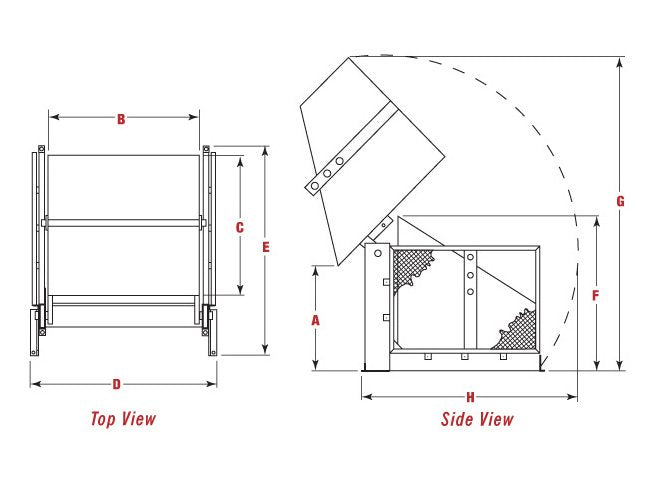

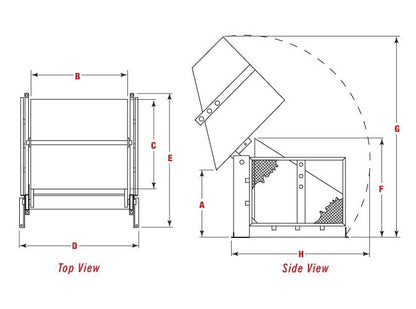

Specifications Approximate Weight
1085 lb
Specifications Arc Height G
108 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
53 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
52 in
Specifications Dump Height A
36 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
68 in
Specifications Overall Width D
65 in
Specifications Series
DP
Specifications Speed
19 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
79 in
