Advance Lifts DP Series 52-Inch Standard Container Dumper
Advance Lifts DP Series 52-Inch Standard Container Dumper
SKU:CON-03b2df
Compact and efficient hydraulic dumper with 2000 lb capacity, ISO 9001:2015, and UL certifications.
Regular price
$6,799.99
Regular price
Sale price
$6,799.99
Unit price
per
Initiate Order
Advance Lifts DP Series 52-Inch Standard Container Dumper
$6,799.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series 52-Inch Standard Container Dumper
$6,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts DP Series 52-Inch Standard Container Dumper is designed for efficiency and durability. With a capacity of 2000 lb and a 120-inch arc height, this hydraulic dumper offers a minimum footprint and can handle a variety of materials, from grains to castings. Built to meet International Organization for Standardization (ISO 9001:2015) and Underwriters Laboratories (UL) certifications, this dumper ensures safety and reliability. Its special features include an adjustable retaining bar, hard chrome plated components, and a 10-year warranty for extended peace of mind. Made in the USA.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

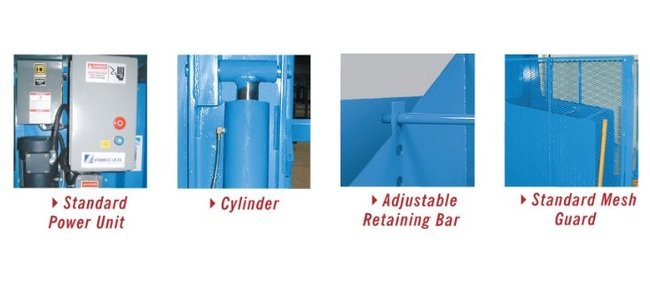

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.
Specifications Approximate Weight
1050 lb
Specifications Arc Height G
120 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
65 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
52 in
Specifications Dump Height A
48 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
58 in
Specifications Overall Width D
65 in
Specifications Series
DP
Specifications Speed
25 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
79 in
