Advance Lifts DP Series 52" Standard Container Dumper
Advance Lifts DP Series 52" Standard Container Dumper
SKU:CON-3a32fb
Discover the Advance Lifts DP Series 52" Container Dumper, a reliable and efficient solution for diverse material dumping needs.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Advance Lifts DP Series 52" Standard Container Dumper
$8,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series 52" Standard Container Dumper
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts DP Series 52" Standard Container Dumper is a top-of-the-line solution for efficiently dumping a variety of materials, including meat, grain, castings, plastic pellets, and more. With a sturdy 4000 lb capacity and a 99" Arc Height, it offers unparalleled performance in a compact design. Featuring a 10-year warranty, ISO 9001:2015 and UL certifications, this dumper ensures reliability and compliance with industry standards. Explore custom options and accessories like stainless steel carriage and epoxy paint finishes for a tailored solution.
Product Specifications
Accessories Accessories

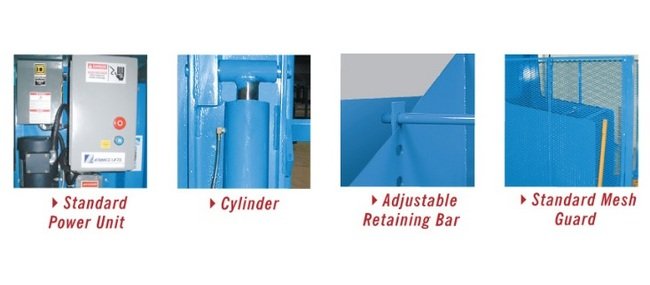

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

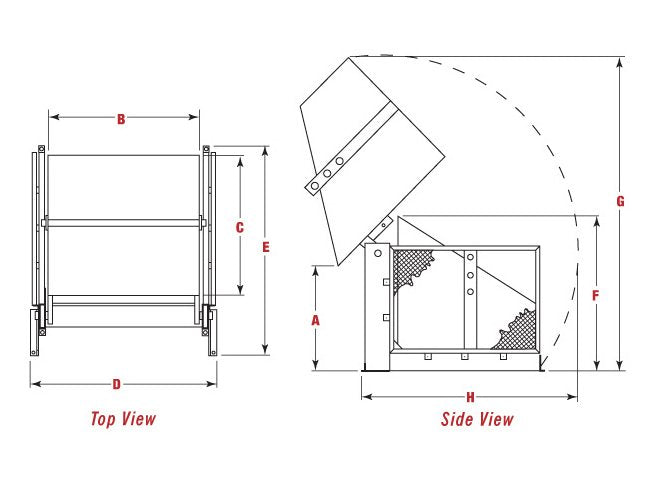

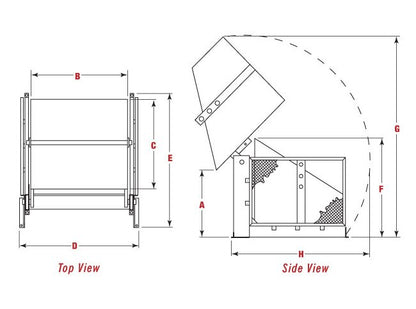

Specifications Approximate Weight
1070 lb
Specifications Arc Height G
99 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
53 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
52 in
Specifications Dump Height A
36 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
58 in
Specifications Overall Width D
65 in
Specifications Series
DP
Specifications Speed
33 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
70 in
