Advance Lifts DP Series Carriage Container Dumper
Advance Lifts DP Series Carriage Container Dumper
SKU:CON-77ad3c
Compact, efficient, and versatile container dumper for a variety of materials, with quick cycle time and high capacity.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Advance Lifts DP Series Carriage Container Dumper
$5,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series Carriage Container Dumper
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

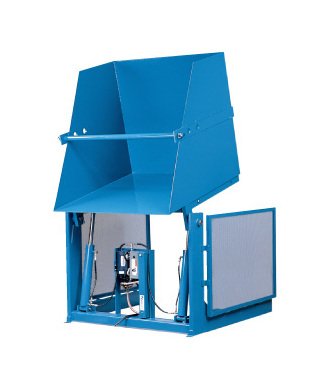

The Advance Lifts DP Series 52 Inch Carriage Container Dumper is a compact and efficient solution for tilting containers up to 125 degrees. With a 4000 lb capacity and a speedy 37-second cycle, this dumper is ideal for handling various materials including meat, grain, or plastic pellets. Featuring a durable construction and adjustable retaining bar, this dumper is designed for minimal footprint without compromising on performance. Backed by a 10-year warranty and compliance with ISO 9001:2015 and UL standards, this USA-made dumper ensures reliability and safety for your dumping needs.
Product Specifications
Accessories Accessories

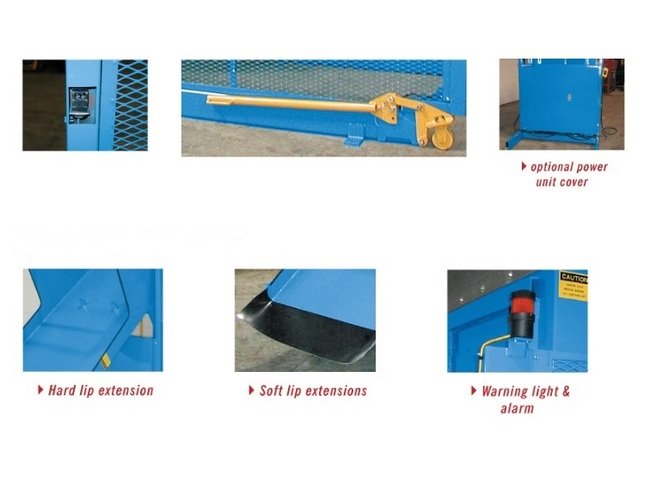

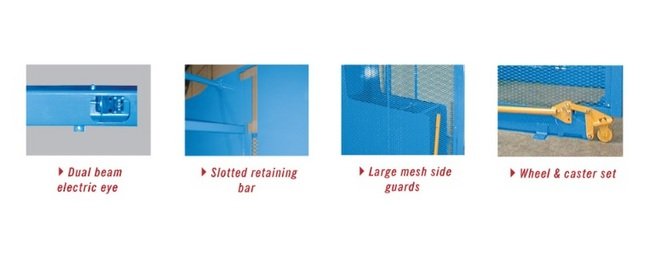

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

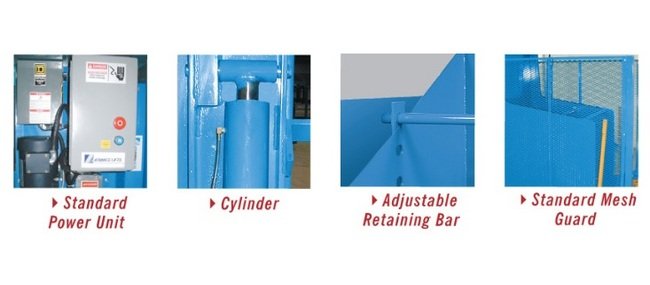

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

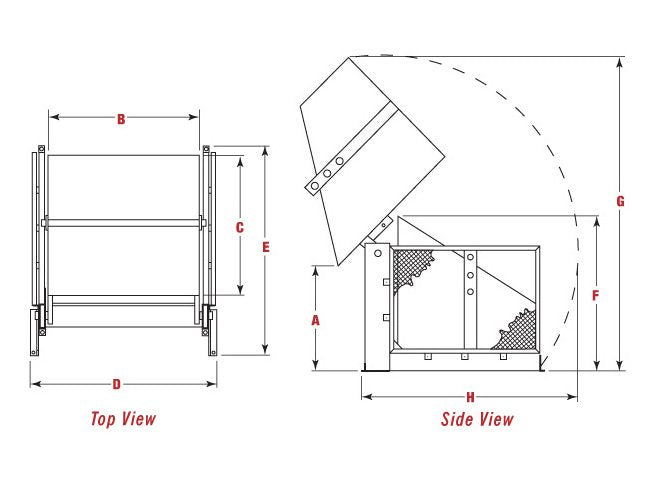

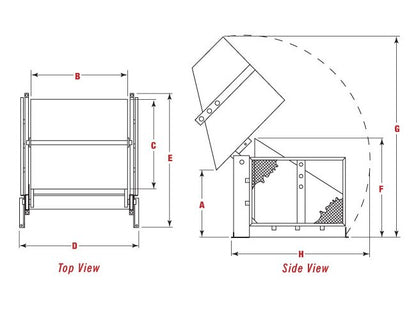

Specifications Approximate Weight
1080 lb
Specifications Arc Height G
120 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
65 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
52 in
Specifications Dump Height A
48 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
58 in
Specifications Overall Width D
65 in
Specifications Series
DP
Specifications Speed
37 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
79 in
