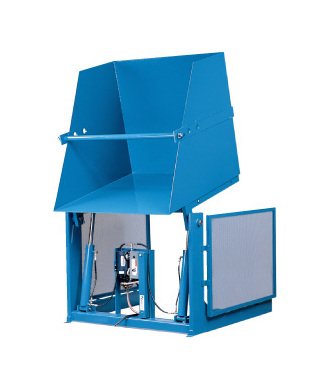

Advance Lifts DP Series Container Dumper
Advance Lifts DP Series Container Dumper
SKU:CON-d4bd2f
Efficient and versatile container dumper featuring 2000 lb capacity, compact design, and ISO 9001:2015 & UL certifications.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Advance Lifts DP Series Container Dumper
$5,899.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series Container Dumper
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts DP Series 52 Inch Carriage Width Standard Container Dumper is designed for efficiency and versatility. With a capacity of 2000 lb, it features a 33 seconds speed, 149 inch Arc Height, and meets International Organization for Standardization (ISO 9001:2015) and Underwriters Laboratories (UL) certifications. This dumper offers a compact design, adjustable retaining bar, and durable construction with hard chrome plated components. Made in the USA with a 10-year warranty, it's ideal for various industries including government and institutional procurement.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

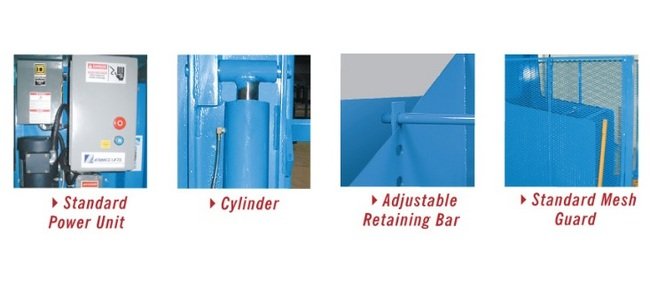

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

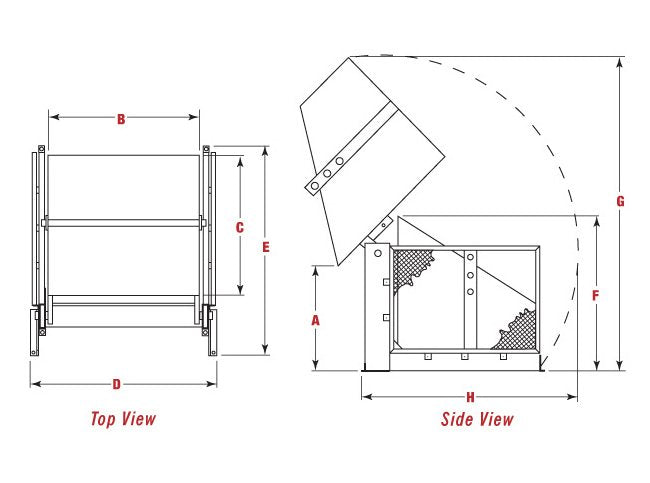

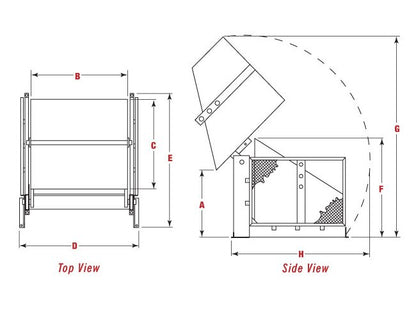

Specifications Approximate Weight
1105 lb
Specifications Arc Height G
149 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
77 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
52 in
Specifications Dump Height A
60 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
70 in
Specifications Overall Width D
65 in
Specifications Series
DP
Specifications Speed
33 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
87 in
