Advance Lifts DP Series Container Dumper - 40-Inch Carriage Width
Advance Lifts DP Series Container Dumper - 40-Inch Carriage Width
SKU:CON-99b875
Efficient and reliable 40-Inch Carriage Width Container Dumper for diverse applications.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
Advance Lifts DP Series Container Dumper - 40-Inch Carriage Width
$6,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series Container Dumper - 40-Inch Carriage Width
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

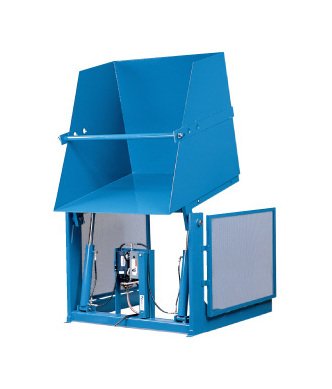

The Advance Lifts DP Series Standard Container Dumper offers a compact design with a minimum footprint. Capable of tilting approximately 125 degrees, this hydraulic dumper features a robust carriage suitable for various contents such as meat, grain, castings, plastic pellets, or mail. With a capacity of 2000 lb and a quick 19-second speed, it is designed for efficiency and reliability. Key features include adjustable retaining bars, machine-grade cylinders, and UL-listed controllers. This American-made dumper is fully primed and finished with baked enamel, ensuring long-lasting performance.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

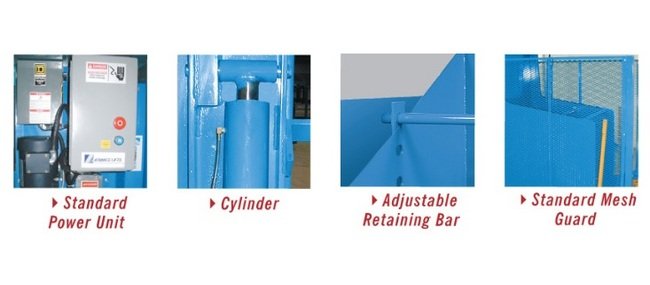

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

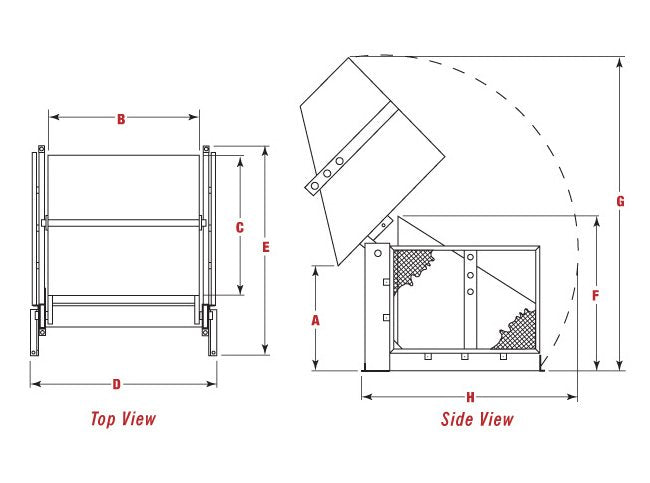

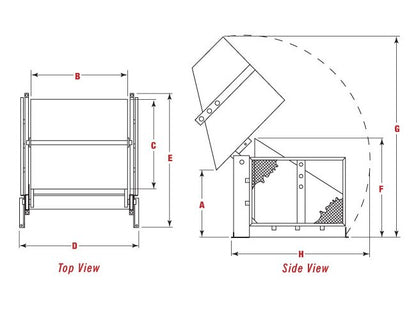

Specifications Approximate Weight
1045 lb
Specifications Arc Height G
108 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
53 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
40 in
Specifications Dump Height A
36 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
68 in
Specifications Overall Width D
53 in
Specifications Series
DP
Specifications Speed
19 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
79 in
