Advance Lifts HDDP 103 Inch Heavy-Duty Container Dumper
Advance Lifts HDDP 103 Inch Heavy-Duty Container Dumper
SKU:CON-c5b178
Meet demanding heavy-duty dumping needs with the robust Advance Lifts HDDP 103 Inch Container Dumper.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Advance Lifts HDDP 103 Inch Heavy-Duty Container Dumper
$8,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HDDP 103 Inch Heavy-Duty Container Dumper
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HDDP 103 Inch Heavy-Duty Container Dumper is specifically designed for applications exceeding six cycles per hour or more than one shift per day, where sticky commodities require frequent jogging to maintain flow. Built with robust structural members and equipped with a 5hp continuous duty motor, this dumper offers a 6000 lb capacity and a fast 53-second dumping speed. With features like a full 135-degree tilt, machine-grade double-acting cylinders, and UL-approved controllers, this dumper ensures efficient and reliable operation. Backed by a 10-year warranty and meeting ISO 9001:2015 and UL standards, it is a top choice for heavy-duty dumping needs.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Additional Information Additional Information
These Heavy-Duty container dumpers are ideal for tough applications. Inquire about our industrial dumpers today.
Note Note
Made in USA.
Note To Developer Note To Developer
The table below is for placement only and is the Standard Dumpers Spec Chart. You can use it to edit or deleted it and make a new Spec Chart for HDDP.
Special Features And Benefits Special Features And Benefits

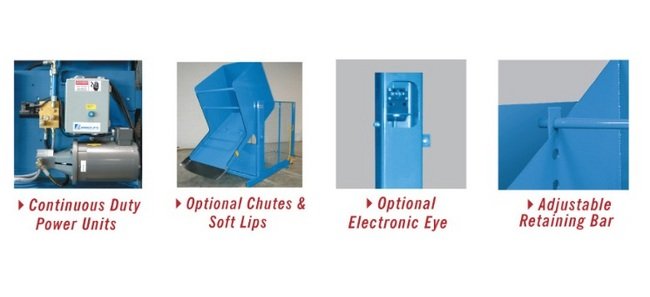

Full 135 degree tilt.Machine grade double acting cylinders with spherical rod ends.Continuous duty motorsControllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

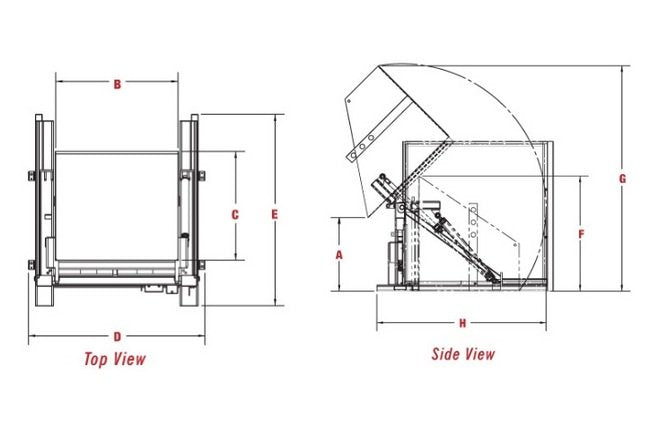

Specifications Approximate Weight
2300 lb
Specifications Arc Height G
137 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
79 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
54 in
Specifications Dump Height A
60 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
103 in
Specifications Overall Width D
78 in
Specifications Series
HDDP
Specifications Speed
53 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
99 in
