Advance Lifts HDDP Series Heavy-Duty Container Dumper
Advance Lifts HDDP Series Heavy-Duty Container Dumper
SKU:CON-896410
Designed for high-cycle applications with sticky commodities, the Advance Lifts HDDP Series Heavy-Duty Container Dumper ensures efficient material flow.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
Advance Lifts HDDP Series Heavy-Duty Container Dumper
$8,999.00
Quantity: 1
Claim Your Seller Account
Advance Lifts HDDP Series Heavy-Duty Container Dumper
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

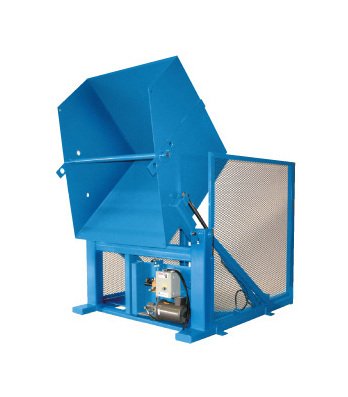

The Advance Lifts HDDP Series 82 Inch Heavy-Duty Container Dumper is designed for high-demand applications exceeding six cycles per hour. With a robust continuous duty motor and sturdy construction, it efficiently handles sticky commodities, ensuring smooth material flow. Featuring a 4000 lb capacity, 135-degree tilt, double-acting cylinders, and UL-approved controllers, this dumper is built for durability and reliability. With ISO 9001:2015 and UL certifications, it meets stringent industry standards.
Product Specifications
Accessories Accessories

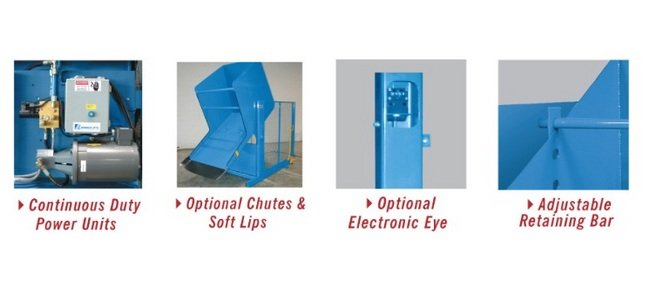

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Additional Information Additional Information
These Heavy-Duty container dumpers are ideal for tough applications. Inquire about our industrial dumpers today.
Note Note
Made in USA.
Note To Developer Note To Developer
The table below is for placement only and is the Standard Dumpers Spec Chart. You can use it to edit or deleted it and make a new Spec Chart for HDDP.
Special Features And Benefits Special Features And Benefits
Full 135 degree tilt.Machine grade double acting cylinders with spherical rod ends.Continuous duty motorsControllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

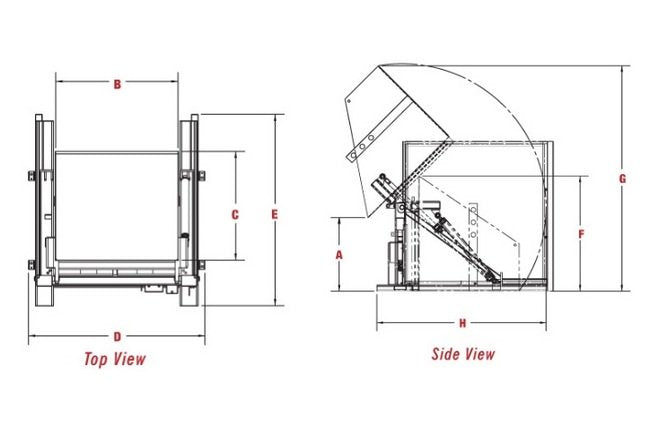

Specifications Approximate Weight
1900 lb
Specifications Arc Height G
117 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
67 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
48 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
82 in
Specifications Overall Width D
72 in
Specifications Series
HDDP
Specifications Speed
40 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
79 in
