Advance Lifts HDDP Series Heavy-Duty Container Dumper
Advance Lifts HDDP Series Heavy-Duty Container Dumper
SKU:CON-b389cb
Advance Lifts HDDP Series Heavy-Duty Container Dumper: High-capacity, powerful motor, industry-compliant design.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Advance Lifts HDDP Series Heavy-Duty Container Dumper
$7,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HDDP Series Heavy-Duty Container Dumper
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

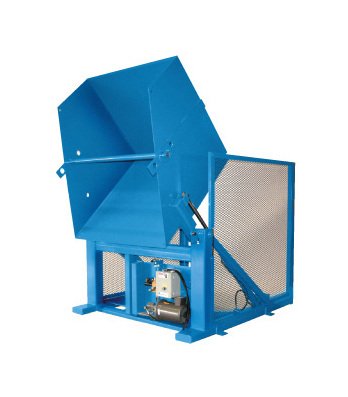

The Advance Lifts HDDP Series 91-inch Heavy-Duty Container Dumper is a robust solution designed for high-demand environments requiring frequent dumping cycles. With a 6000 lb capacity and a powerful 5hp motor, this dumper excels in handling sticky commodities with ease. Equipped with industry-leading features like a full 135-degree tilt, machine-grade double-acting cylinders, and continuous duty motors, this dumper ensures reliable performance. Built to International Organization for Standardization (ISO 9001:2015) and Underwriters Laboratories (UL) standards, this dumper offers durability and safety for demanding operations.
Product Specifications
Accessories Accessories

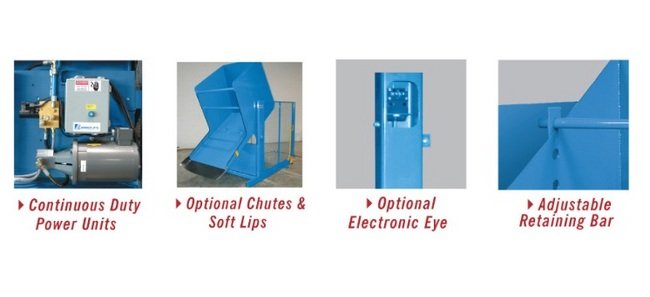

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Additional Information Additional Information
These Heavy-Duty container dumpers are ideal for tough applications. Inquire about our industrial dumpers today.
Note Note
Made in USA.
Note To Developer Note To Developer
The table below is for placement only and is the Standard Dumpers Spec Chart. You can use it to edit or deleted it and make a new Spec Chart for HDDP.
Special Features And Benefits Special Features And Benefits
Full 135 degree tilt.Machine grade double acting cylinders with spherical rod ends.Continuous duty motorsControllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

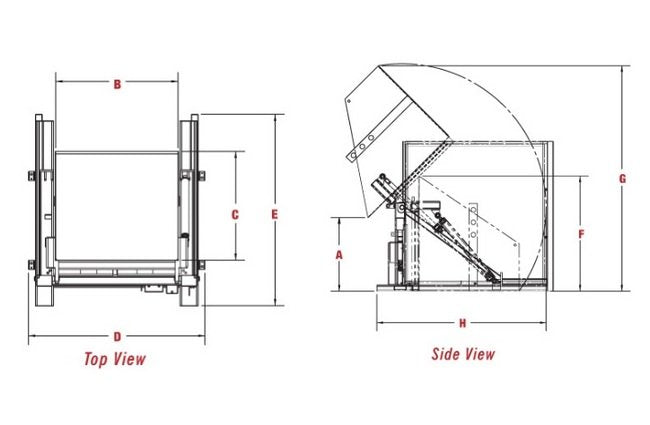

Specifications Approximate Weight
2100 lb
Specifications Arc Height G
126 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
79 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
60 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
91 in
Specifications Overall Width D
72 in
Specifications Series
HDDP
Specifications Speed
53 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
88 in
