Advance Lifts HDDP Series Heavy-Duty Container Dumper
Advance Lifts HDDP Series Heavy-Duty Container Dumper
SKU:CON-21ce0f
High-performance heavy-duty container dumper designed for industrial applications, 135-degree tilt, UL approved controllers, 10-year warranty.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Advance Lifts HDDP Series Heavy-Duty Container Dumper
$7,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HDDP Series Heavy-Duty Container Dumper
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

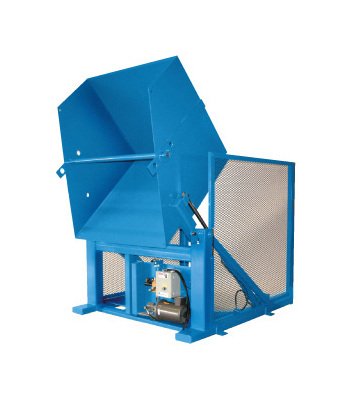

The Advance Lifts HDDP Series Heavy-Duty Container Dumper is designed for high-demand applications exceeding six cycles per hour. With a robust build and continuous duty motor, this dumper efficiently handles sticky commodities requiring frequent jogging. Featuring a 135-degree tilt, machine-grade cylinders, and Underwriter Laboratory approved controllers, this dumper ensures reliable and smooth operations for heavy-duty industrial needs. Backed by a 10-year warranty, it complies with ISO 9001:2015 and UL standards.
Product Specifications
Accessories Accessories

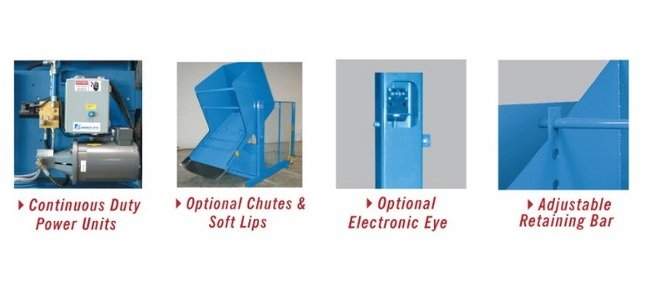

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Additional Information Additional Information
These Heavy-Duty container dumpers are ideal for tough applications. Inquire about our industrial dumpers today.
Note Note
Made in USA.
Note To Developer Note To Developer
The table below is for placement only and is the Standard Dumpers Spec Chart. You can use it to edit or deleted it and make a new Spec Chart for HDDP.
Special Features And Benefits Special Features And Benefits
Full 135 degree tilt.Machine grade double acting cylinders with spherical rod ends.Continuous duty motorsControllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

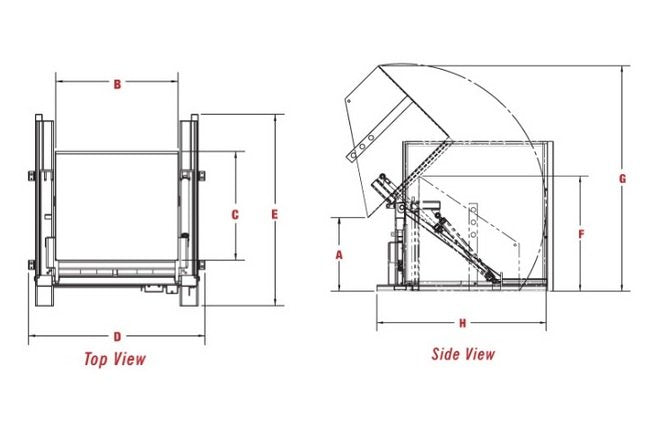

Specifications Approximate Weight
1900 lb
Specifications Arc Height G
98 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
36 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
73 in
Specifications Overall Width D
72 in
Specifications Series
HDDP
Specifications Speed
41 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
70 in
