Advance Lifts High Reach Container Dumper
Advance Lifts High Reach Container Dumper
SKU:CON-7fae14
Efficiently lift and dump containers with Advance Lifts High Reach Container Dumper - 4000 lb Capacity, 54 in Carriage, 146 in Arc Height. ISO 9001:2015 & UL Certified.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Advance Lifts High Reach Container Dumper
$8,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts High Reach Container Dumper
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HRDP Series 4000 lb Capacity High Reach Container Dumper is designed for efficiently lifting containers to a height of 146 inches for seamless dumping. Equipped with a 54-inch carriage width and a 72-inch dump height, this dumper streamlines operations for applications requiring elevated container handling. With a sturdy build and 10-year warranty, it features a 135-degree tilt, single-acting cylinder for lifting, double-acting cylinders with spherical rod ends for tilting, and Underwriter Laboratory approved controllers for safe and reliable performance. Made in the USA, this high reach container dumper meets ISO 9001:2015 and UL standards.
Product Specifications
Accessories Accessories

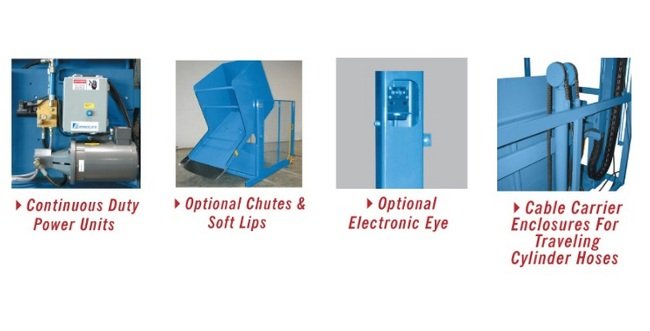

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.
Specifications Approximate Weight
2700 lb
Specifications Arc Height G
146 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
54 in
Specifications Dump Height A
72 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
85 in
Specifications Series
HRDP
Specifications Speed
37 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
