Advance Lifts HRDP 2000 lb High Reach Container Dumper
Advance Lifts HRDP 2000 lb High Reach Container Dumper
SKU:CON-9010a1
Achieve high-elevation container dumping efficiency with the Advance Lifts HRDP Series. ISO 9001:2015 & UL certified.
Regular price
$15,699.99
Regular price
Sale price
$15,699.99
Unit price
per
Initiate Order
Advance Lifts HRDP 2000 lb High Reach Container Dumper
$15,699.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP 2000 lb High Reach Container Dumper
$15,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HRDP Series High Reach Container Dumper is engineered for lifting containers to elevated positions for efficient dumping. With a robust 2000 lb capacity, 48-inch carriage width, and impressive 194-inch arc height, this dumper optimizes space by combining lifting and dumping functions in one compact unit. Featuring industry-leading standards such as ISO 9001:2015 and UL certifications, this dumper ensures safety, durability, and compliance for various applications in processing industries. Benefit from its full 135-degree tilt, single-acting cylinder for lifting, double-acting cylinders with spherical rod ends for tilting, continuous duty motors, and UL-approved controllers.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

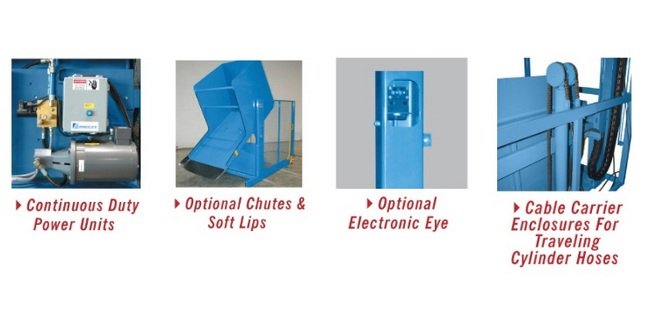

Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

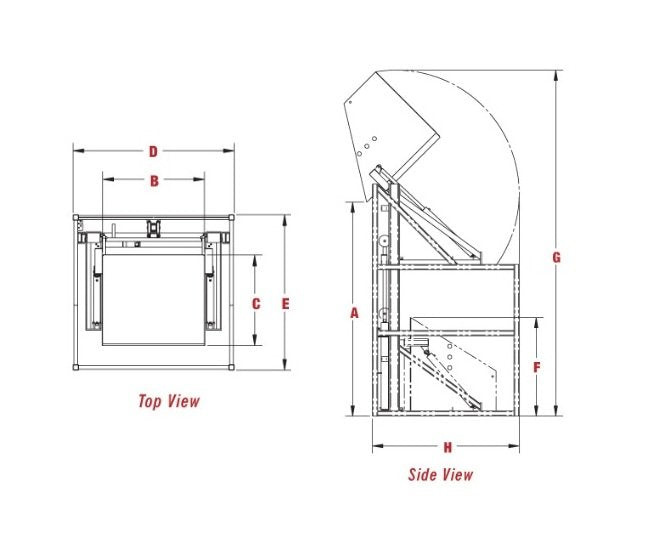

Specifications Approximate Weight
2500 lb
Specifications Arc Height G
194 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
120 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
51 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
