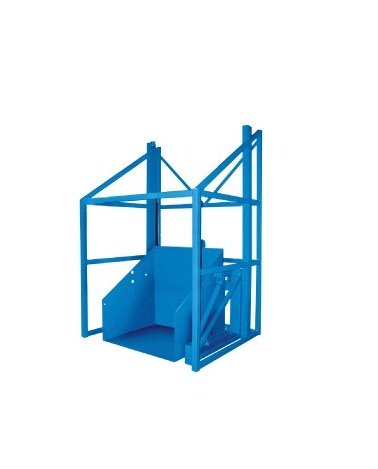

Advance Lifts HRDP-6000 High Reach Container Dumper
Advance Lifts HRDP-6000 High Reach Container Dumper
SKU:CON-8fca20
The Advance Lifts HRDP-6000: Safe high-reach container dumping up to 162 inches with 6000 lb capacity & UL-approved controls.
Regular price
$17,500.00
Regular price
Sale price
$17,500.00
Unit price
per
Initiate Order
Advance Lifts HRDP-6000 High Reach Container Dumper
$17,500.00
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP-6000 High Reach Container Dumper
$17,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HRDP-6000 High Reach Container Dumper is a robust solution designed for lifting containers to a height of 162 inches and efficiently dumping them with a 135-degree tilt. With a 6000 lb capacity and compact design, it eliminates the need for long conveyors, ideal for high in-feed locations in various applications. This USA-made dumper features a powerful 5 hp motor, UL-approved controllers, and ISO 9001:2015 certification, ensuring reliable and safe operation for your high-lift dumping needs.
Product Specifications
Accessories Accessories

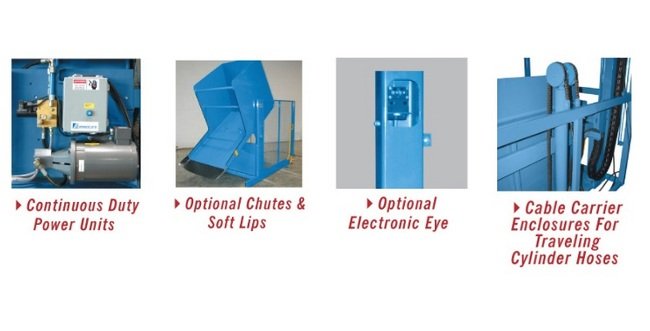

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

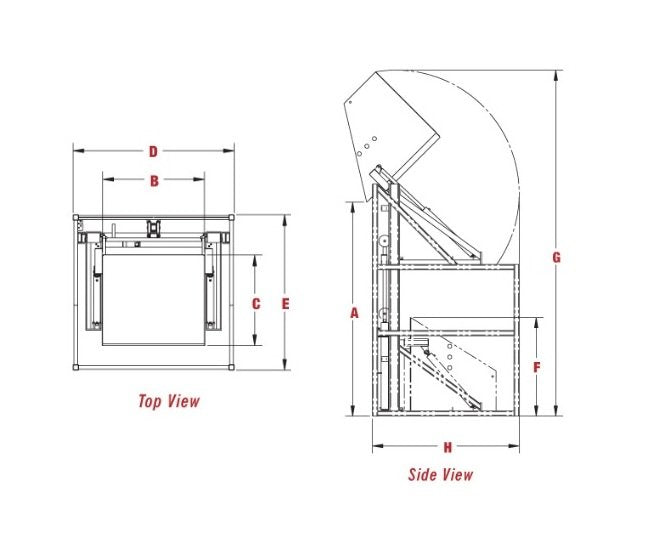

Specifications Approximate Weight
3200 lb
Specifications Arc Height G
162 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
96 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
71 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
44 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
71 in
