Advance Lifts HRDP 6000 lb High Reach Container Dumper
Advance Lifts HRDP 6000 lb High Reach Container Dumper
SKU:CON-9a9730
Advance Lifts HRDP Series: 6000 lb High Reach Container Dumper with 48'' Carriage Width & 194'' Arc Height
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Advance Lifts HRDP 6000 lb High Reach Container Dumper
$12,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP 6000 lb High Reach Container Dumper
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HRDP Series High Reach Container Dumper is a robust solution designed for lifting containers to a high elevation and efficiently dumping them in one compact unit. With a 48-inch carriage width and 194-inch arc height, this dumper offers a 6000 lb capacity and a powerful 5 hp motor. Its special features include a full 135-degree tilt capability, machine-grade single-acting cylinder for lifting, double-acting cylinders with spherical rod ends for tilting, and UL-approved controllers. Made in the USA, this dumper is backed by a 10-year warranty and meets ISO 9001:2015 and UL standards.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.

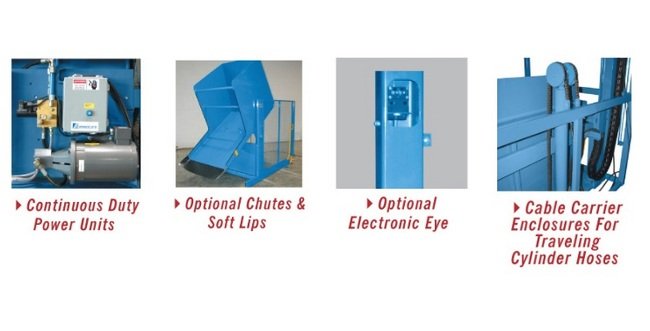

Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

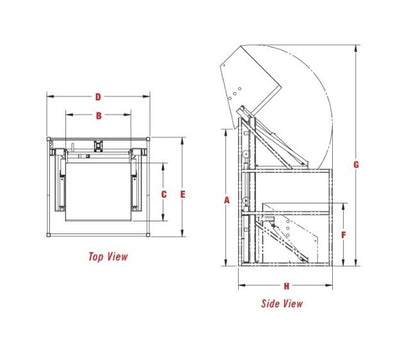

Specifications Approximate Weight
3400 lb
Specifications Arc Height G
194 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
120 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
67 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
