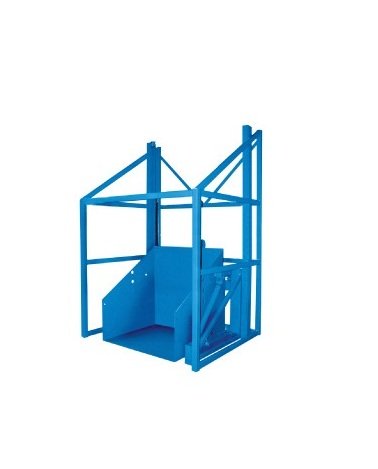

Advance Lifts HRDP 6000 lb High Reach Container Dumper
Advance Lifts HRDP 6000 lb High Reach Container Dumper
SKU:CON-2ff77a
Optimize efficiency with the Advance Lifts HRDP 6000 lb High Reach Container Dumper - powerful, safe, and ISO 9001:2015 certified.
Regular price
$13,999.99
Regular price
Sale price
$13,999.99
Unit price
per
Initiate Order
Advance Lifts HRDP 6000 lb High Reach Container Dumper
$13,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP 6000 lb High Reach Container Dumper
$13,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience ultimate efficiency with the Advance Lifts HRDP Series 6000 lb High Reach Container Dumper. Designed for high-level container lifting and dumping, this unit combines safety and compactness. Featuring a 48-inch carriage width and 170-inch arc height, it significantly reduces the need for additional equipment like long conveyors or mezzanines. With a powerful 5 hp motor, ISO 9001:2015 and UL certifications, and a 10-year warranty, this high reach container dumper ensures reliable performance and adherence to industry standards.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

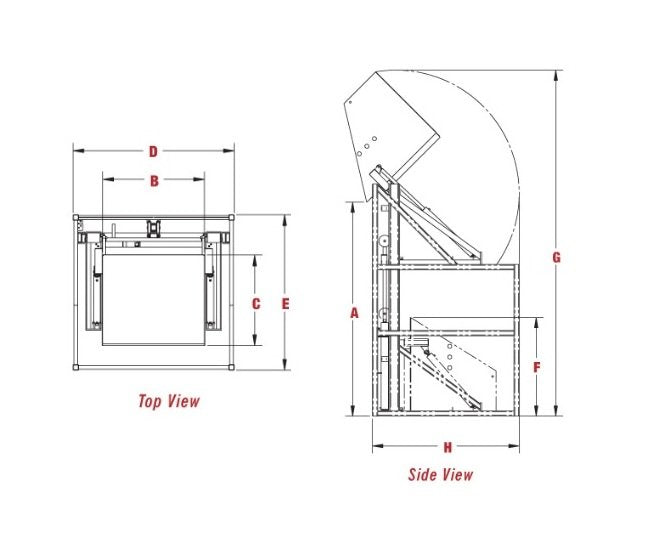

Specifications Approximate Weight
3300 lb
Specifications Arc Height G
170 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
96 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
44 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
