Advance Lifts HRDP 6000 lb High Reach Container Dumper
Advance Lifts HRDP 6000 lb High Reach Container Dumper
SKU:CON-7725c0
Efficiently lift and dump containers with the Advance Lifts HRDP 6000 lb High Reach Container Dumper. Ideal for high in-feed applications, safe and reliable with industry-leading features.
Regular price
$13,699.00
Regular price
Sale price
$13,699.00
Unit price
per
Initiate Order
Advance Lifts HRDP 6000 lb High Reach Container Dumper
$13,699.00
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP 6000 lb High Reach Container Dumper
$13,699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

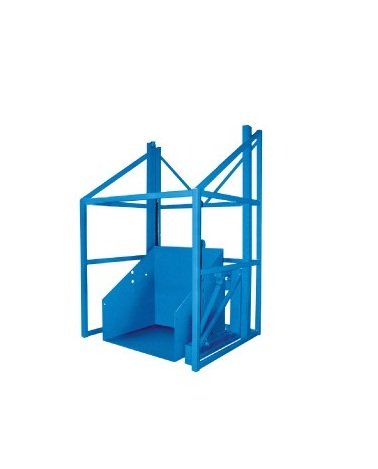

The Advance Lifts HRDP Series 6000 lb High Reach Container Dumper is a versatile solution designed to lift and dump containers at high elevations with efficiency and safety. Featuring a 54-inch carriage width and a 146-inch arc height, this container dumper is ideal for applications requiring high in-feed locations such as grinders and processing equipment. With a robust 5 hp motor, it offers a smooth operation with a dumping height of 72 inches, eliminating the need for extensive conveyor systems or lift equipment. This machine is equipped with industry-leading safety features such as machine-grade cylinders and Underwriter Laboratory approved controllers, ensuring reliable performance. Made in the USA and backed by a 10-year warranty, this high reach container dumper is a durable and reliable choice for your material handling needs.
Product Specifications
Accessories Accessories

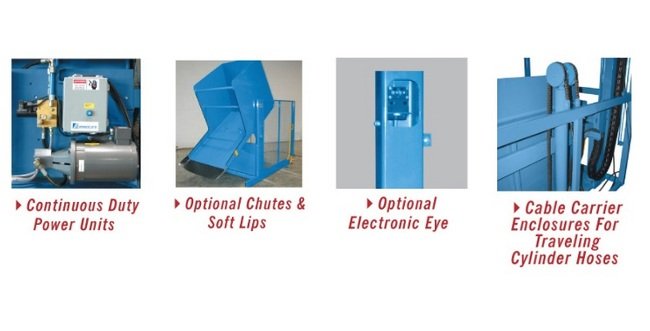

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.
Specifications Approximate Weight
3300 lb
Specifications Arc Height G
146 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
54 in
Specifications Dump Height A
72 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
85 in
Specifications Series
HRDP
Specifications Speed
37 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
