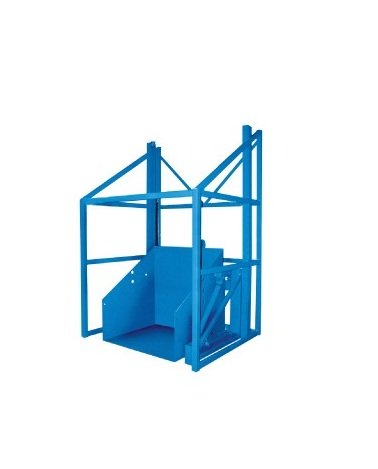

The Advance Lifts HRDP Series High Reach Container Dumper is specifically engineered for applications requiring elevated container handling and dumping functionalities. With a robust 2000 lb capacity and a 194-inch arc height, this unit combines lifting and dumping capabilities in a single compact design. Featuring precise engineering and adherence to industry standards, this high reach container dumper is ideal for applications like grinders and processing equipment with high in-feed locations. Enjoy the convenience of a machine grade single acting cylinder for lifting and double acting cylinders with spherical rod ends for tilting. Additionally, continuous duty motors and UL-approved controllers ensure reliable and safe operation. Discover unmatched efficiency and durability with this American-made solution.
Product Specifications
Accessories Accessories

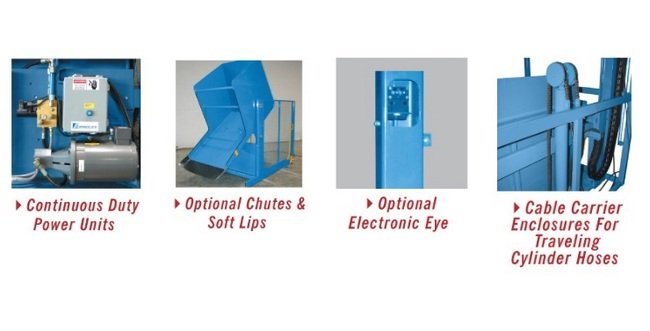

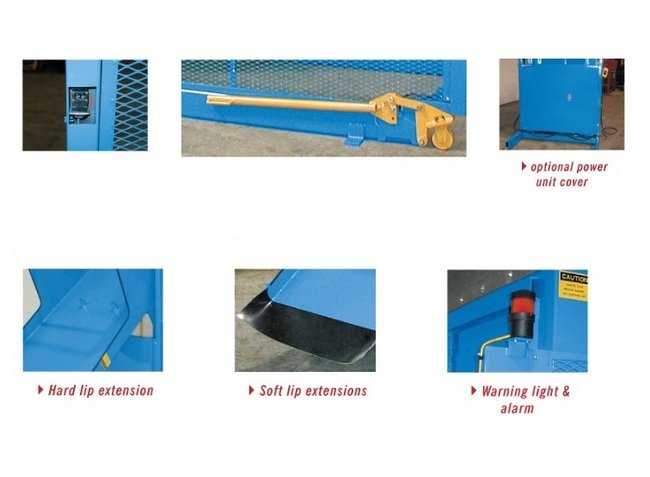

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

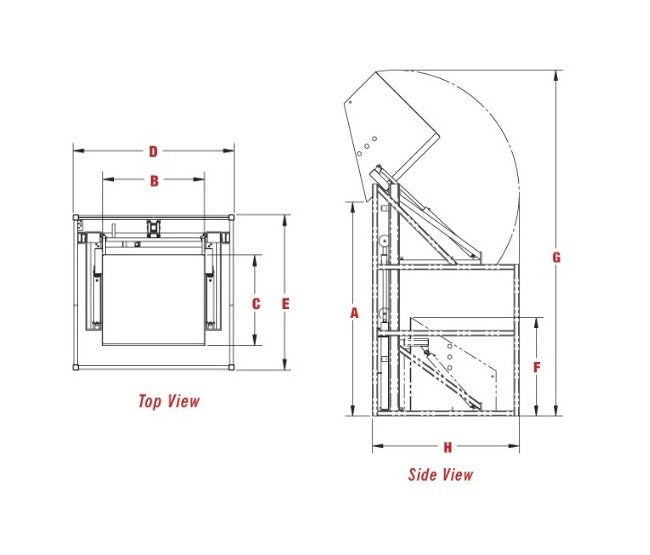

Specifications Approximate Weight
2500 lb
Specifications Arc Height G
194 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
54 in
Specifications Dump Height A
120 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
85 in
Specifications Series
HRDP
Specifications Speed
51 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
