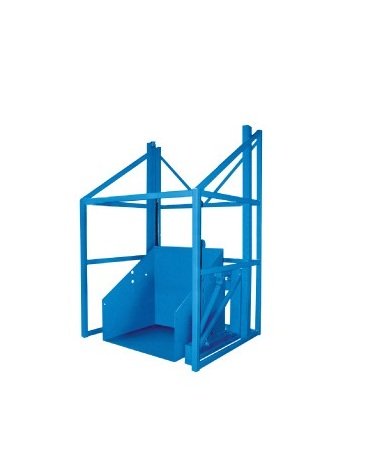

Advance Lifts HRDP Series 4000 lb High Reach Container Dumper
Advance Lifts HRDP Series 4000 lb High Reach Container Dumper
SKU:CON-9c349c
Efficiently dump containers at height with the Advance Lifts HRDP Series High Reach Dumper.
Regular price
$6,799.99
Regular price
Sale price
$6,799.99
Unit price
per
Initiate Order
Advance Lifts HRDP Series 4000 lb High Reach Container Dumper
$6,799.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP Series 4000 lb High Reach Container Dumper
$6,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HRDP Series 4000 lb High Reach Container Dumper is a versatile solution designed for applications requiring elevated container dumping. With a 194-inch arc height and a 54-inch carriage width, this dumper offers efficiency and safety in one compact unit. Featuring a 135-degree tilt function and high-quality lifting cylinders, it ensures smooth operations for industries like processing facilities and warehouses. Built in the USA and backed by a 10-year warranty, this dumper meets ISO 9001:2015 and UL standards.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.
Specifications Approximate Weight
2800 lb
Specifications Arc Height G
194 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
54 in
Specifications Dump Height A
120 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
85 in
Specifications Series
HRDP
Specifications Speed
51 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
