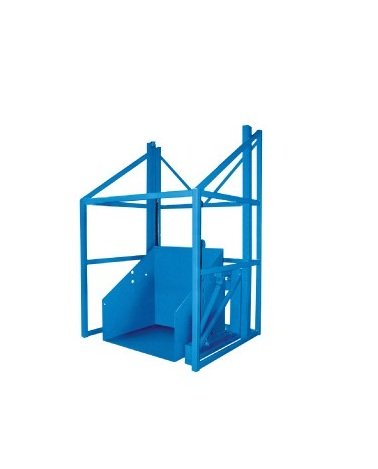

The Advance Lifts HRDP Series 6000 lb High Reach Container Dumper is a robust solution designed for applications necessitating lifting and dumping containers to elevated positions. With a 186-inch arc height and 48-inch carriage width, this unit features a full 135-degree tilt, machine-grade single-acting cylinder for lifting, and double-acting cylinders with spherical rod ends for tilting. Its continuous duty motors, UL-approved controllers, and lifetime-lubricated bearings ensure reliable performance. This high reach container dumper is proudly made in the USA, offering exceptional quality and durability. Ideal for grinders and processing equipment with high in-feed locations, it streamlines operations and eliminates the need for long power conveyors or mezzanines serviced by lift systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

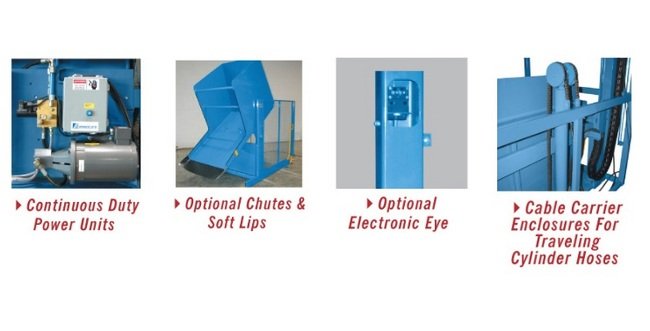

Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

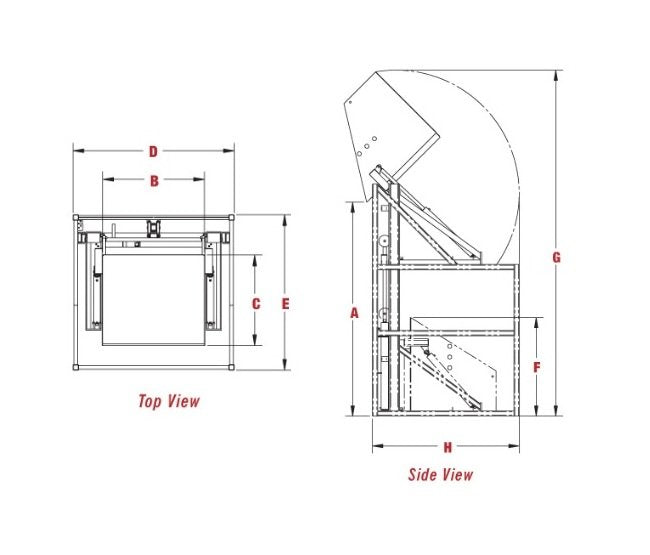

Specifications Approximate Weight
3300 lb
Specifications Arc Height G
186 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
120 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
71 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
67 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
71 in
