Advance Lifts HRDP Series High Reach Container Dumper
Advance Lifts HRDP Series High Reach Container Dumper
SKU:CON-012411
Versatile 4000 lb Capacity High Reach Container Dumper with 96" dump height, 170" arc height, and UL-approved controllers.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Advance Lifts HRDP Series High Reach Container Dumper
$8,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP Series High Reach Container Dumper
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HRDP Series 4000 lb Capacity High Reach Container Dumper is a versatile solution for lifting and dumping containers at elevated heights. With a 96-inch dump height and 170-inch arc height, this unit features a machine-grade single-acting cylinder for lifting and double-acting cylinders with spherical rod ends for tilting. Equipped with continuous duty motors and UL-approved controllers, this dumper offers efficiency and safety. Additionally, it meets International Organization for Standardization (ISO 9001:2015) and Underwriters Laboratories (UL) standards. Made in the USA with a 10-year warranty.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

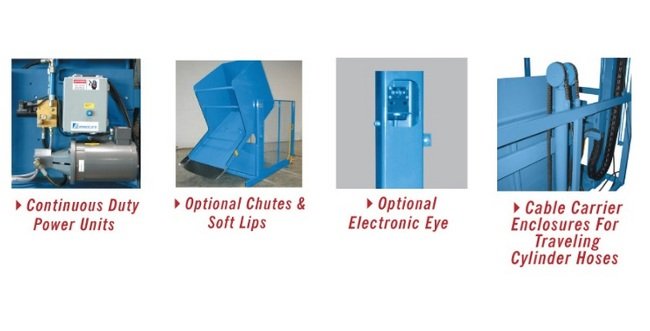

Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

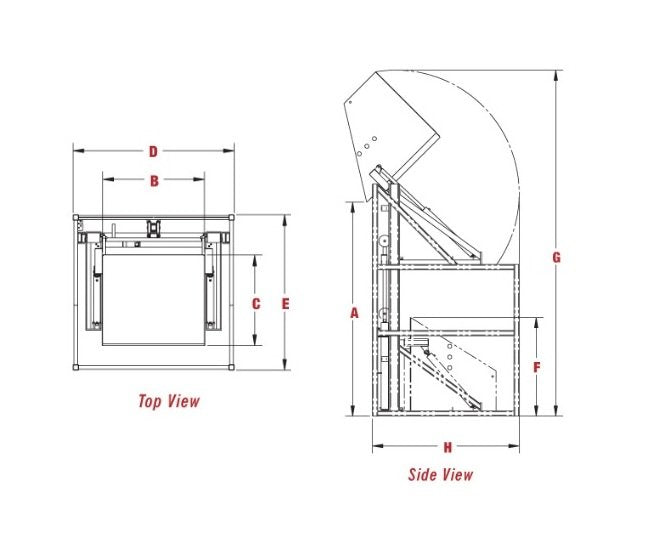

Specifications Approximate Weight
2700 lb
Specifications Arc Height G
170 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
96 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
79 in
Specifications Series
HRDP
Specifications Speed
44 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
