Advance Lifts HRDP Series High Reach Container Dumper 2000 lb Capacity
Advance Lifts HRDP Series High Reach Container Dumper 2000 lb Capacity
SKU:CON-180690
Advance Lifts HRDP Series High Reach Container Dumper: 2000 lb Capacity, 72 in Dump Height, ISO 9001:2015 & UL Certified
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Advance Lifts HRDP Series High Reach Container Dumper 2000 lb Capacity
$7,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts HRDP Series High Reach Container Dumper 2000 lb Capacity
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts HRDP Series High Reach Container Dumper with a 2000 lb capacity is a robust solution designed for lifting containers to a high elevation and efficiently dumping them. Featuring a motor power of 5 hp, it provides a smooth operation with a dump height of 72 inches. Its special features include a full 135-degree tilt, machine-grade cylinder for lifting, double-acting cylinders for tilting, and Underwriter Laboratory approved controllers. This high reach dumper meets ISO 9001:2015 and UL standards, ensuring durability and performance. Optional accessories like stainless steel carriage and custom controls enhance its versatility for various applications. Made in the USA with a 10-year warranty and weighing 2400 lbs, it offers reliability and efficiency for industrial tasks.
Product Specifications
Accessories Accessories

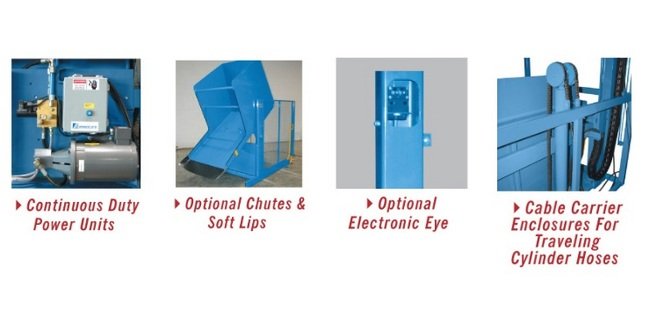

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
Full 135 degree tiltMachine grade single acting cylinder with for lifting and double acting cylinders spherical rod ends for tilting.Continuous duty motors.Controllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.
Specifications Approximate Weight
2400 lb
Specifications Arc Height G
146 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
54 in
Specifications Dump Height A
72 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
83 in
Specifications Overall Width D
85 in
Specifications Series
HRDP
Specifications Speed
37 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
83 in
