Advance Lifts Hydraulic VRC - 2000 lb Capacity, 48 x 48 in Platform
Advance Lifts Hydraulic VRC - 2000 lb Capacity, 48 x 48 in Platform
SKU:MEZ-da8a73
Efficiently transport goods between floors with Advance Lifts's Hydraulic VRC - 2000 lb Capacity, 48 x 48 in Platform. Safe, durable, and compliant with industry standards.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Advance Lifts Hydraulic VRC - 2000 lb Capacity, 48 x 48 in Platform
$7,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts Hydraulic VRC - 2000 lb Capacity, 48 x 48 in Platform
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

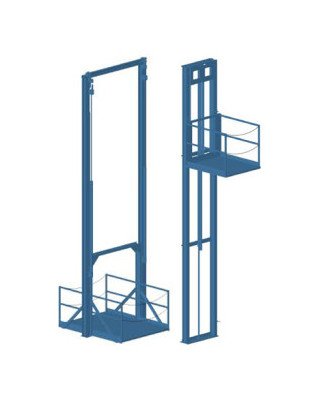

The Advance Lifts Hydraulic Vertical Reciprocating Conveyor (VRC) is a robust solution for efficiently transporting goods between multiple floor levels. With a maximum capacity of 2000 lb and a minimum platform size of 48 x 48 inches, this Cantilever Hydraulic High Speed VRC boasts a lowered height of 2.25 inches and an overall travel height exceeding 105 inches. Designed to meet ANSI, ASME, ISO 9001:2015, and UL standards, this unit comes with a 5-year structural warranty. Featuring a locking system for hydraulic failure scenarios, machine-grade cylinders, and a baked enamel finish, this VRC guarantees safety and durability.
Product Specifications
Accessories Accessories
Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Additional Information Additional Information
Enclosures are quoted separately.For small package liftsFor Rider Lift applicationsIn addition to our hydraulic lift systems, we also offer Mechanical VRC Lifts.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
All of the controllers are assembled in our UL listed panel shopThese units conform to ASME B20.1These units also conform to VRC Guidelines - as referenced in ASME B20.1Hydraulic mezzanine lifts have a locking system in case of hydraulic failureThese hydraulic vertical lifts are fully primed and have a baked enamel finishThe cylinders in hydraulic units are machine grade with return lines
Specifications Capacity
2000 lb
Specifications Electricalhydraulic Warranty
1 Years
Specifications Industry Standards
American National Standards Institute (ANSI) | American Society of Mechanical Engineers (ASME)International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
2.25 in
Specifications Maximum Platform Size
96 x 96 in
Specifications Maximum Travel Size
22 ft
Specifications Minimum Overall Platform Depth
62 in
Specifications Minimum Overall Platform Width
48 in
Specifications Minimum Platform Size
48 x 48 in
Specifications Motor Power
5 hp
Specifications Number Of Cylinders
2
Specifications Overall Travel Height
105+ in
Specifications Speed
25 ft/min
Specifications Structural Warranty
5 Years
Specifications Type
Cantilever Hydraulic High Speed
