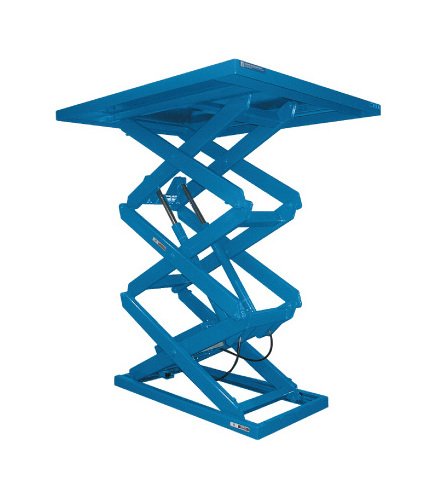

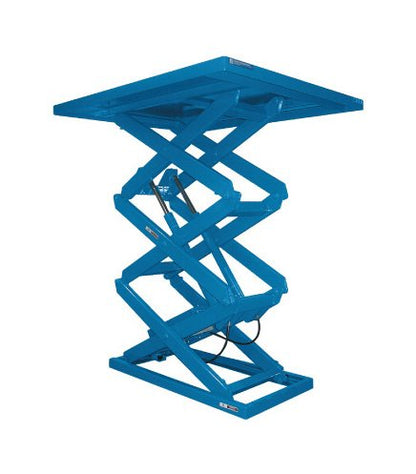

Advance Lifts MSL Series 144" Travel 6000 lb Scissor Lift
Advance Lifts MSL Series 144" Travel 6000 lb Scissor Lift
SKU:MEZ-a620fb
Explore Advance Lifts' MSL Series Scissor Lift for safe, efficient mezzanine access. Patented features, UL-listed controls, and ANSI compliance ensure durability and easy assembly.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Advance Lifts MSL Series 144" Travel 6000 lb Scissor Lift
$8,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts MSL Series 144" Travel 6000 lb Scissor Lift
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts MSL Series Scissor Lift is engineered for high-travel applications with a compact design and cost savings benefits. Featuring solid steel legs for lighter capacities and structural tubing legs for higher capacities, this lift provides safe and efficient access for servicing mezzanines. Equipped with patented Platform Centering Devices, UL-listed controllers, and conforming to ANSI standards, this lift ensures durability and longevity. Fully assembled and primed with a baked enamel finish, it offers a lowered height of 23" and a raised height of 167" in just 65 seconds, powered by a 5hp motor. Explore various optional features and accessories for enhanced functionality.
Product Specifications
Accessories Accessories

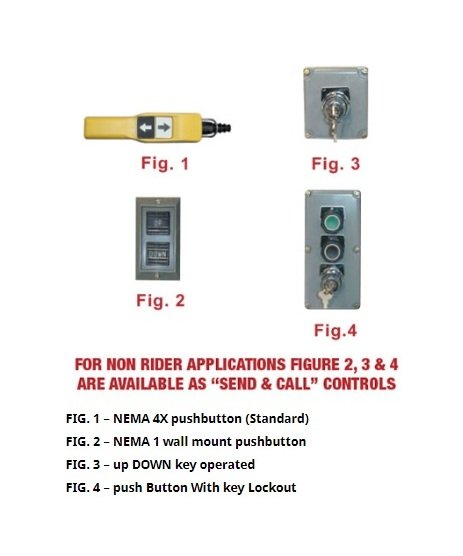

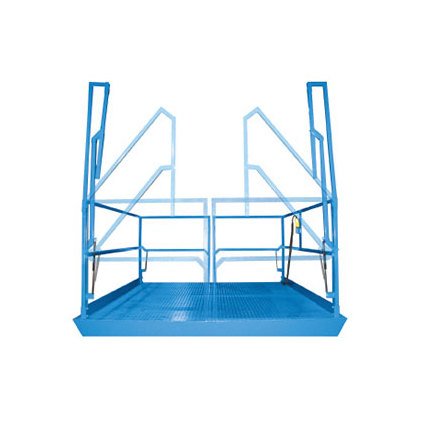

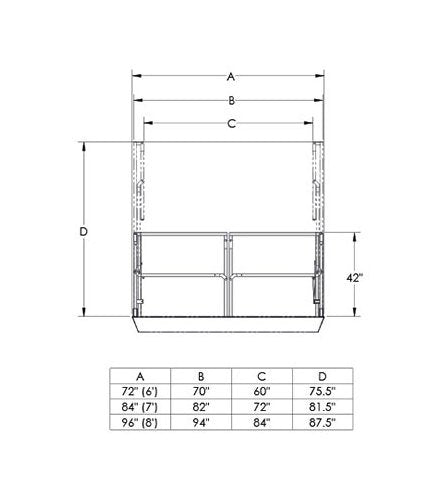

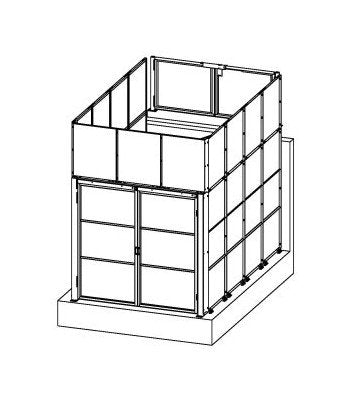

Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Note Note
Consult the factory for higher speeds with larger power units, custom travels, custom platform sizes and capacities.Made in USA.
Special Features And Benefits Special Features And Benefits
These units are equipped with the patented "Platform Centering Devices", which doubles or triples lift life.All of the controllers are Underwriter Laboratory listed assemblies.These multi stage scissor lift tables are fully primed and finished with a baked enamel finish.The cylinders are machine grade with clear plastic return lines.All pressure hoses are double wire braid with JIC fittings.The reservoirs are mild steel.These hydraulic lifting platforms conform to all applicable ANSI codes.
Specifications Base Frame Size
36 x 74 in
Specifications Capacity
6000 lb
Specifications Industry Standards
American National Standards Institute (ANSI) | International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
23 in
Specifications Maximum End Load Capacity
3000 lb
Specifications Maximum Optional Platform Size
48 x 98 in
Specifications Maximum Side Load Capacity
3000 lb
Specifications Minimum Standard Platform Size
36 x 74 in
Specifications Motor Power
5 hp
Specifications Parts And Labor Warranty
1 Years
Specifications Raised Height
167 in
Specifications Series
MSL
Specifications Shipping Weight
2325 lb
Specifications Speed
65 seconds
Specifications Structural Warranty
10 Years
Specifications Travel Size
144 in
