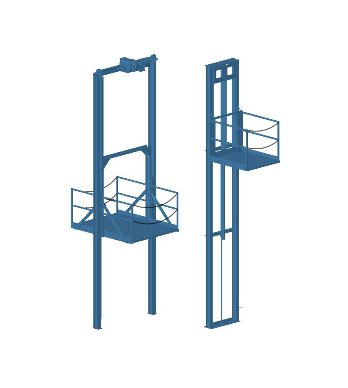

Advance Lifts VRC Mechanical Vertical Reciprocating Conveyor - 3000 lb Capacity
Advance Lifts VRC Mechanical Vertical Reciprocating Conveyor - 3000 lb Capacity
SKU:MEZ-9418f3
Efficiently move goods with Advance Lifts VRC Mechanical Vertical Reciprocating Conveyor - 3000 lb Capacity
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Advance Lifts VRC Mechanical Vertical Reciprocating Conveyor - 3000 lb Capacity
$7,999.99
Quantity: 1
Claim Your Seller Account
Advance Lifts VRC Mechanical Vertical Reciprocating Conveyor - 3000 lb Capacity
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advance Lifts VRC Mechanical Vertical Reciprocating Conveyor is designed for efficient and safe transportation of goods between multiple floors. With a 3000 lb capacity and a minimum overall platform width of 68 inches, this lift meets industry standards including ASME B20.1, ISO 9001:2015, and UL certifications. Features like integral holding brakes, double chains, and mechanical locking brakes ensure secure operations. Suitable for C, Z, or L loading patterns and available in various platform sizes, this lift is perfect for mezzanine access lifts.
Product Specifications
Accessories Accessories
Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Additional Information Additional Information
For small package liftsFor Rider Lift applications
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
All of our controllers are assembled in our UL listed panel shopThese mechanical vertical lifts conform ASME B20.1These units also conform to VRC Guidelines - as referenced in ASME B20.1Motors are equipped with integral holding brakesAll vertical conveyor lifts have double chainsThe carriages also have mechanical locking brakes in case of chain failure.
Specifications Capacity
3000 lb
Specifications Electrical Warranty
1 Years
Specifications Industry Standards
American Society of Mechanical Engineers (ASME B20.1) | International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
2.25 in
Specifications Maximum Platform Size
96 x 96 in
Specifications Maximum Travel Size
100 ft
Specifications Minimum Overall Platform Depth
48 in
Specifications Minimum Overall Platform Width
68 in
Specifications Minimum Platform Size
48 x 48 in
Specifications Motor Power
7.5 hp
Specifications Overall Travel Height
120+ in
Specifications Speed
30 ft/min
Specifications Structural Warranty
5 Years
Specifications Type
Straddle Mast Mechanical
