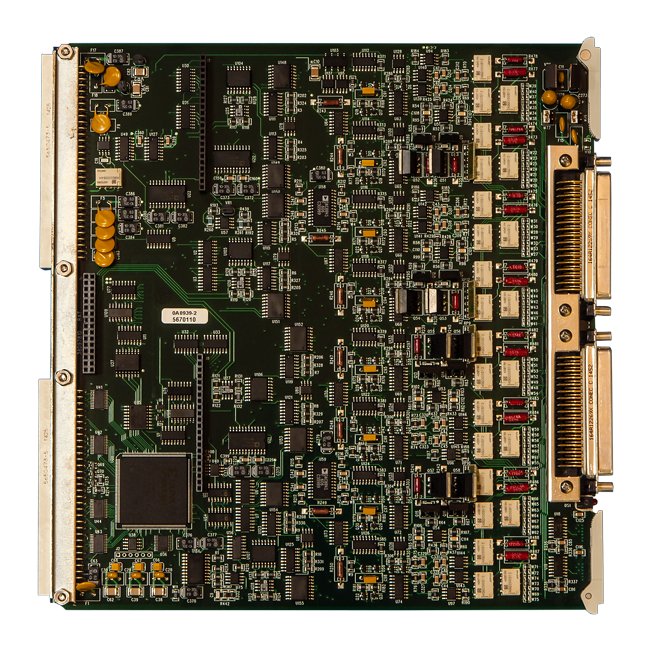

Advanced 8-Channel Bridge Transducer Amplifier
Advanced 8-Channel Bridge Transducer Amplifier
SKU:INT-eb2e9d
Achieve precision data acquisition with our Advanced 8-Channel Bridge Transducer Amplifier-Filter-Digitizer.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Advanced 8-Channel Bridge Transducer Amplifier
$2,499.99
Quantity: 1
Claim Your Seller Account
Advanced 8-Channel Bridge Transducer Amplifier
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advanced 8-Channel Bridge Transducer Amplifier is a high-performance signal-conditioning solution, ideal for strain gages and bridge transducers in demanding measurement applications. Featuring programmable excitation, voltage and shunt calibration, customizable gains up to 5,000, and a programmable low-pass filter, this module ensures precise data acquisition at up to 20ks/s per channel with 16-bit resolution. With two-step shunt calibration, remote sensing, and voltage substitution capabilities, this amplifier provides unparalleled accuracy and reliability for critical measurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
5 kHz for gains <1,000 and 1 kHz for gains 1,000 and higher.
Amplifier Common Mode
80 dB plus gain in dB up to 110 dB, DC to 60 Hz for ±10 Volts.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.004%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 10 Hz
0.1 µV rms RTI, 0.5 mV rms RTO.
Amplifier Noise 1 Khz
1.0 µV rms RTI, 0.5 mV rms RTO
Amplifier Recovery
120 µS to ±0.1% for 10X overload to ±10 V.
Amplifier Slew Rate
3.2 V/µS
Amplifier Source Current
±10 nA, ±1 nA/ºC.
Amplifier Zero Amplifier
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO for 8 hours.
Calibration Shunt
Two step Bipolar shunt, 0.5024 mV/V and 0.245 mV/V for 350 Ohm bridge, ±0.1%. For a 120 Ohm bridge, steps are 0.17235 mV/V and 0.08402 mV/V, ±0.1%.
Calibration Voltage Substitution
Attenuator accuracy is 0.02% for 1 and 0.01% for 0.1 and 0.01.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Digitizer Alarms
Two alarms each with programmable upper and lower limits and persistence checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
3 LSB (0.01%)
Digitizer Resolution
16-bits, two's complement.
Digitizer Sample
Simultaneous, within ±50 nS channel-to-channel. Droop is less than ±0.005%.
Digitizer Sample Rate
6039B: Up to 10 ks/s per channel. | 6039C: Up to 20 ks/s per channel.
Excitationtransducer Power Configuration Transducer Power
Transducer power available on separate pins from voltage excitation.
Excitationtransducer Power Current
50 mA limited to 70 mA.
Excitationtransducer Power Current Transducer Power
50 mA per channel, limited to 200 mA maximum per card.
Excitationtransducer Power Monitor
Calibration mode measures excitation voltage with ±0.2% accuracy
Excitationtransducer Power Regulation
±0.01% for ±10% line and no-load to full-load using remote sensing.
Excitationtransducer Power Stability
±0.01%, ±0.005 %/ºC
Excitationtransducer Power Transducer Power
±12 or ±15 Volts or 28V jumper selectable per card.
Excitationtransducer Power Voltage Excitation
Programmable per channel from 0-12 Volts in 1 Volt ±0.1% steps, or adjustable with 3.3 mV resolution.
Excitationtransducer Power Voltage Excitation Noise
200 µV peak-to-peak
Filter Frequency
4-pole: 4 Hz, 10 Hz, 100 Hz and 1 kHz. | 8-pole: 10 Hz and 1 kHz.
Filter Noise Filter
0.5 mV rms, RTO.
Filter Other
Other filter characteristics and cut offs are available.
Filter Type
4-freq. 4-pole (standard), 2-freq. 8-pole Butterworth with wideband.
Input Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005%/°C. Coarse and fine balance are jumper selectable.
Input Configuration
8 channels, 2 to 8 wire with guard shield. Bridge config is programmable for ¼, ½ and full bridge. 120 and 350 Ohm completion resistor standard, alternate value may be specified.
Input Impedance
50 Megohms, shunted by 500 pF.
Input Protection
±50 Volts differential, ±50 Volts common mode.
Overview Analog Bandwidth
1 kHz
Overview Excitationtransducer Power
±12V | ±15V | Voltage
