Advanced Baffled Box Silicon Monoxide / Zinc Sulphide Source
Advanced Baffled Box Silicon Monoxide / Zinc Sulphide Source
SKU:BAF-f85b04
Innovative Silicon Monoxide / Zinc Sulphide Source for controlled and precise deposition.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Advanced Baffled Box Silicon Monoxide / Zinc Sulphide Source
$499.99
Quantity: 1
Claim Your Seller Account
Advanced Baffled Box Silicon Monoxide / Zinc Sulphide Source
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advanced Baffled Box Silicon Monoxide / Zinc Sulphide Source is a cutting-edge solution designed for precise deposition of Silicon Monoxide. Featuring separate cavities and baffles, this source ensures a controlled indirect path for the source material, eliminating spitting and streaming issues. With dimensions of 3.750 in (W) x 8.125 in (OL) x 0.750 in (Diameter) and a volume of 200 cm³, this source offers superior performance and reliability, making it ideal for a wide range of applications.
Product Specifications
Manufacturing Notes 0
Volumes shown are maximums.Recommended usage is 50% of volumes indicated.

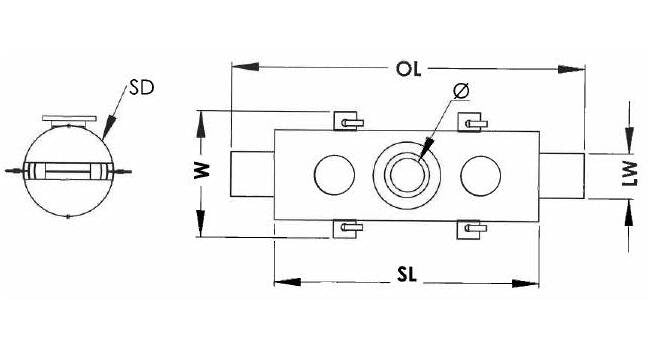

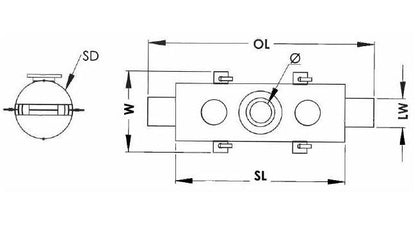

Specifications Diameter
0.750 in
Specifications Dimension Lw
1.500 in
Specifications Dimension Ol
8.125 in
Specifications Dimension Sd
2.500 in
Specifications Dimension Sl
5.875 in
Specifications Dimension W
3.750 in
Specifications Volume
200 cm³
