Advanced Dual O2/CO2 Monitor
Advanced Dual O2/CO2 Monitor
SKU:OXY-2d8f02
Cutting-edge Dual O2/CO2 Monitor for precise gas detection in industrial settings. Audible alarms, LED indicators, and long-life sensors ensure safety.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Advanced Dual O2/CO2 Monitor
$499.99
Quantity: 1
Claim Your Seller Account
Advanced Dual O2/CO2 Monitor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

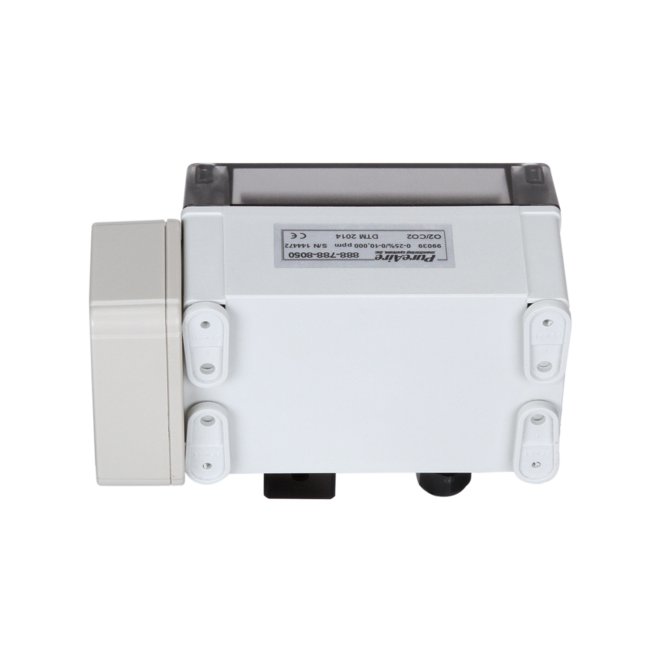

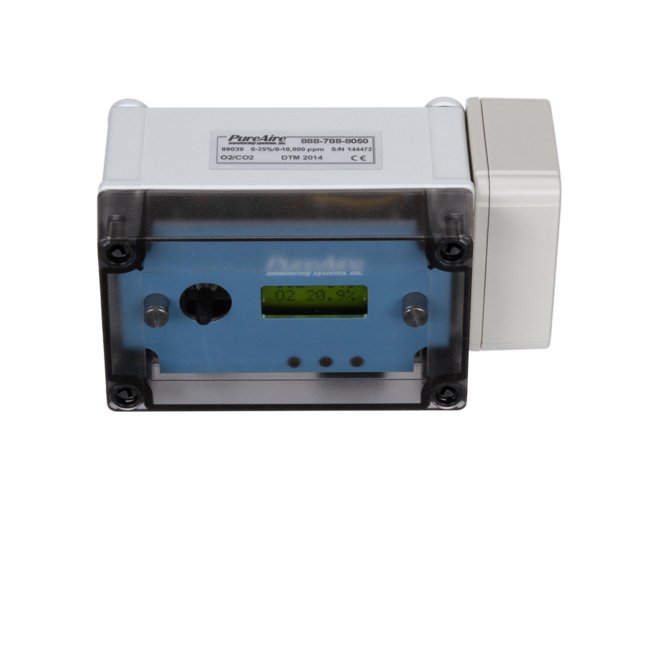

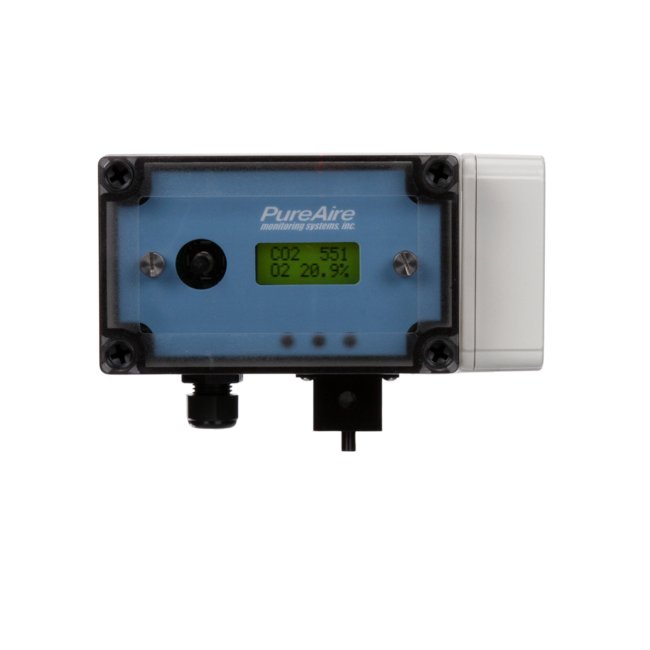

The Advanced Dual O2/CO2 Monitor is a cutting-edge solution designed for environments with Helium, Argon, and Nitrogen. This monitor excels by not only detecting oxygen levels but also CO2 levels in the surrounding area. Ideal for breweries, bottling plants, pharmaceutical facilities, and grow rooms, it features a reliable 10+ year zirconium oxide sensor. With top-tier specifications such as audible and LED alarm indicators, user-adjustable alarm relays, and a long life zirconium oxide sensor for oxygen, this monitor ensures accurate and maintenance-free monitoring. Its self-calibrating CO2 sensor, backlit LCD display, and sturdy polycarbonate enclosure make it a dependable choice for safety and compliance.
Product Specifications
Options Options
24 VDC Power Supply (P/N 45101)Horn and Strobe Combo (P/N 42002)Remote Display (P/N 99091)
Specifications Accuracy
± 1% of Full Scale
Specifications Alarm Indicators
Built-in Audible 90dB horn, Orange LED alarm indicator for CO2, Red LED alarm indicator for O2
Specifications Current
350 mA
Specifications Depth
3.25 in | 82.5 mm
Specifications Direct Current Dc Voltage
24 V
Specifications Display
3/4" back lit LCD digital display
Specifications Enclosure Material
Polycarbonate
Specifications Gases Detected
O2/CO2
Specifications Height
4.5 in | 114.3 mm
Specifications Operating Temperature
-0 to +55 ºC
Specifications Required Calibration
None for Oxygen. None for CO2 when Auto Cal function is activated.
Specifications Sampling Method
Diffusion, 0-25% O2, 0-10,000ppm CO2
Specifications Sensor Type
Long life zirconium oxide sensor for O2 and NDIR for CO2
Specifications Signal Outputs
One user adjustable Alarm relay for Oxygen, One user adjustable Alarm relay for CO2. Relays are rated 2 amp 24VDC / 24VAC
Specifications Weight
1.6 lb | 0.8 kg
Specifications Width
6.5 in | 165.1 mm
Standard Features 0
No maintenance zirconium O2 cell and long life CO2 sensor No calibration required for oxygen Self-calibrating CO2 sensor Local backlit concentration display Built-in audible horn Built-in visual LED alarm indicators Alarm level 1 and 2 for O2 and CO2 No drift due to environmental or temperature changes 3 year warranty
