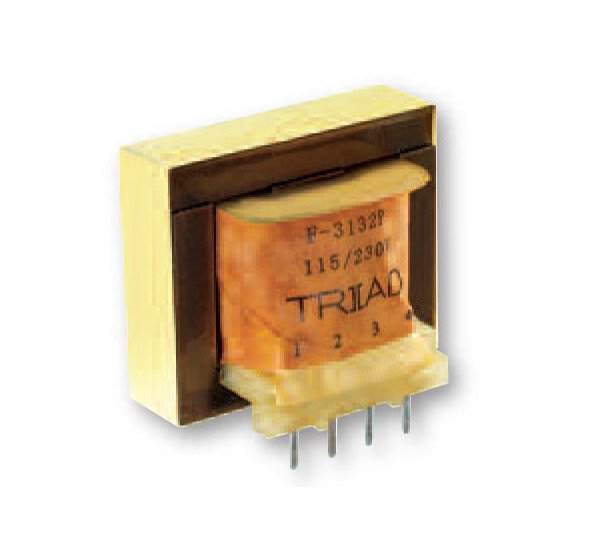

Meet the versatile power needs of PC board and power supply designs with our advanced Dual Primary, Dual Secondary PC Mount Power Transformers. These transformers excel in power, control, and instrumentation applications, available in single or dual primary configurations. With a high electrical rating of 24 V·A, and secondary voltages of 28.0 V CT at 0.8 A and 14.0 V at 1.6 A, they provide reliable performance. Hi-pot tested at 1,500 VRMS, these transformers are engineered for both domestic and foreign markets, ensuring quality and safety.
Product Specifications

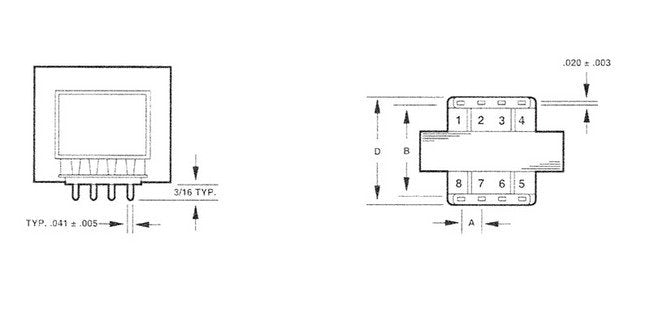

Specifications Depth D
2 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
2 7/64 in
Specifications Electrical Rating
24 V·A
Specifications Height H
1 3/8 in
Specifications Length L
1 5/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
14.0 V at 1.6 A
Specifications Secondary Voltage In Series
28.0 V CT at 0.8 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
13.3 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
