Advanced Electromagnetic Chuck Controller

Name: Advanced Electromagnetic Chuck Controller
Brand: Magnetool, Inc.
SKU: SDS-a8d946
Price: 799.99 USD
Availability: OutOfStock

SKU:SDS-a8d946

Experience precise control and enhanced demagnetization with the Advanced Electromagnetic Chuck Controller from the SD Series.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

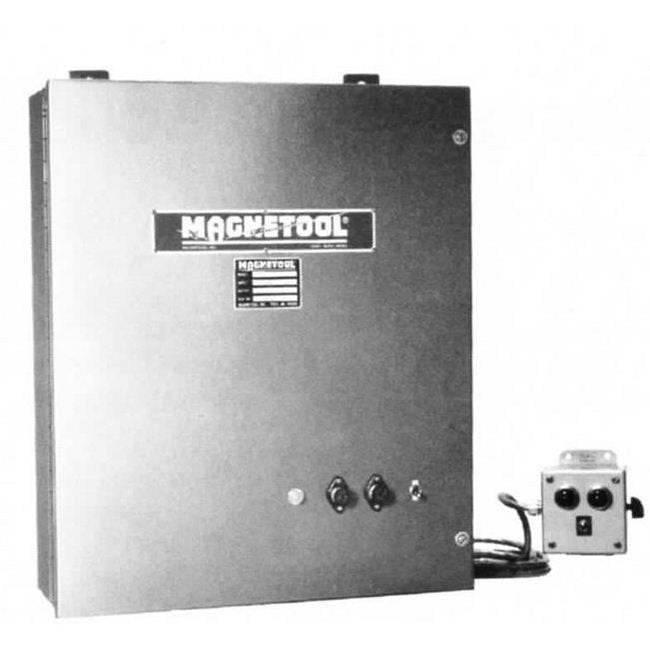

The Advanced Electromagnetic Chuck Controller from the SD Series is designed for applications requiring superior chuck demagnetization and high wattage ratings. With a robust construction, this controller ensures precise control of the chuck operation. The main enclosure, featuring dust-tight sealing, can be conveniently placed at the rear of the machine or wall-mounted for accessibility. Equipped with a range of essential features including a variable power switch, electronic demagnetizing cycle, and an oil-tight remote control unit with indicating lamps, this controller offers enhanced efficiency and reliability in industrial settings.

Product Specifications

Additional Information 0

The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.

Manufacturing Notes 0

0 to 230 VDC output available on request.

Specifications Ac Input Voltage

240 V | 480 V

Specifications Dc Output Voltage

0 to 110 V

Specifications Features

Specifications Input Frequency

60 Hz

Specifications Main Enclosure Depth

7 in

Specifications Main Enclosure Height

20 in

Specifications Main Enclosure Width

16 in

Specifications Power

750 W
