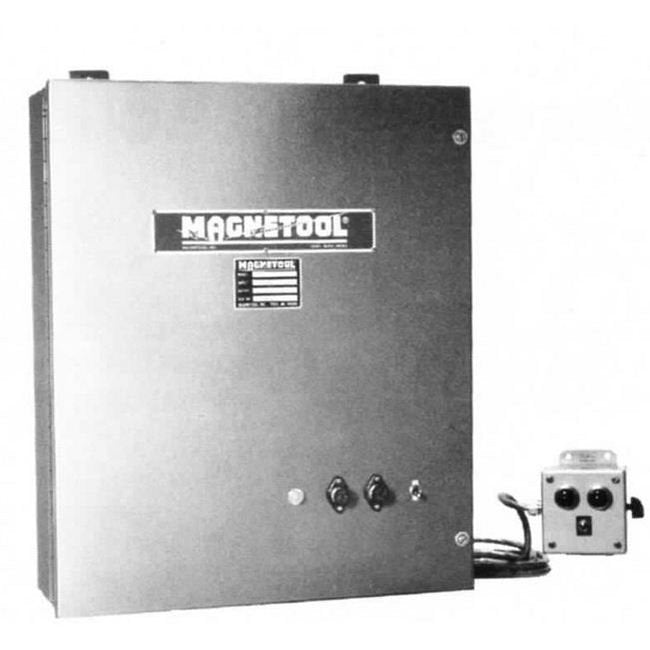

The Advanced Electromagnetic Chuck Controller from the SD Series is specifically designed for applications requiring significant chuck demagnetization and high wattage ratings. It features a compact main enclosure that can be rear-mounted or wall-mounted, while the operational controls are conveniently located at the front of the machine for easy access. With a power rating of 5000 W and variable output voltage ranging from 0 to 230 VDC, this controller ensures precise control over the electromagnetic chuck. The unit boasts advanced features like the 'Residual Hold' function, solid-state circuitry, dust-tight and oil-tight enclosures, and an electronic step-down demagnetizing cycle. Ideal for industrial settings requiring reliable and efficient chuck control.
Product Specifications
Additional Information 0
The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.
Manufacturing Notes 0
0 to 230 VDC output available on request.
Specifications Ac Input Voltage
240 V | 480 V
Specifications Dc Output Voltage
0 to 230 V
Specifications Features
"Residual Hold" feature | 240/480 VAC 1 phase, 60 Hz,input | All Solid State Circuitry | Dust-Tight main enclosure | Electronic Step-Down Demagnetizing Cycle | Oil-Tight remote control unit with indicating lamps | Variable 0 to 110 VDC output voltage
Specifications Input Frequency
60 Hz
Specifications Main Enclosure Depth
13 in
Specifications Main Enclosure Height
24 in
Specifications Main Enclosure Width
30 in
Specifications Power
5000 W
