Advanced Flow-Through Biosensors
Advanced Flow-Through Biosensors
SKU:BIO-98fc59
Cutting-edge biosensors for precise Glucose and Lactate measurement with Platinum electrodes. RoHS compliant & sterilization-compatible.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Advanced Flow-Through Biosensors
$399.99
Quantity: 1
Claim Your Seller Account
Advanced Flow-Through Biosensors
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

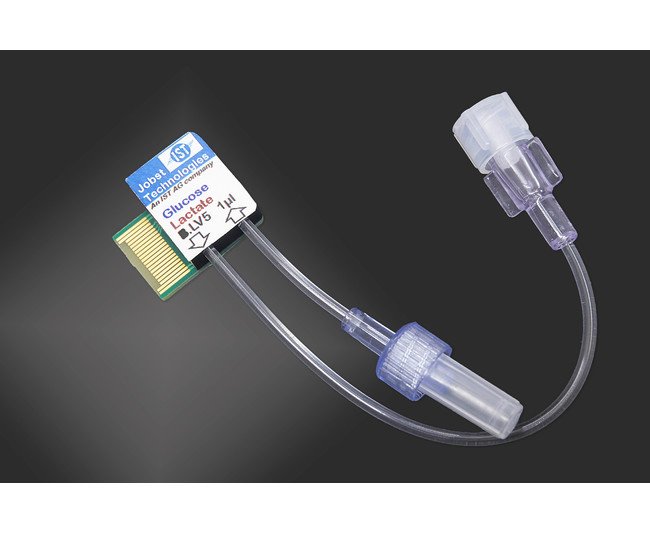

Experience cutting-edge multiparametric measurements with our Advanced Flow-Through Biosensors. This highly robust LV5 sensor variant is housed in an easily mountable package, crafted for seamless testing. With precise Glucose and Lactate measurement capabilities, this biosensor boasts Platinum electrodes equipped with enzyme membranes for accurate readings. The biosensor's compact chip dimensions, RoHS compliance, and sterilization compatibility ensure reliable performance. Ideal for non-medical diagnostic evaluations only.
Product Specifications
Note
Not for medical diagnostics and use on humans. For evaluation use only. For more information contact IST AG.
Specifications Blank Electrode
For Background Compensation
Specifications Chip Height
0.4 mm
Specifications Chip Length
10.0 mm
Specifications Chip Width
4.0 mm
Specifications Counter Electrode
Platinum
Specifications Electrical Connection
Card Connector Compatible with MEC6-RA Connectors (40 Pins in Two Rows, Pitch 0.635 mm)
Specifications Electrodes
1 x Counter | 1 x Reference | 2 x Blank | 2 x Glucose | 2 x Lactate
Specifications Flow Cell Dimension
1 µL
Specifications Fluid Connection Inner Diameter
0.5 mm
Specifications Manufacturer Part Number
B.LV5.F.GL.FC.S
Specifications Measurable Analytes
Glucose | Glutamine and Glutamate Available Upon Request | Lactate
Specifications Note For Chip Height
Height with flow cell 1.23 mm.
Specifications Note For Fluid Connection Inner Diameter
1 x Female Luer Lock, 1 x Male Luer Lock
Specifications Old Product Code
390.0015
Specifications Operating Measurement Range Glucose
0.05 to 25 mm | 0.01 to 4.5 g/L
Specifications Operating Measurement Range Lactate
0.02 to 15 mm | 0.002 to 1.5 g/L
Specifications Operational Life Time In Analyzer Mode
> 4 week
Specifications Operational Life Time With Continuous Operation
> 2 week
Specifications Reference Electrode
Silver | Silver Chloride
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Shelf Life At Recommended Storage Conditions
> 6 months
Specifications Sterilization Compatibility
Beta or gamma sterilization is possible (25 kGy typical).Sensitivity increases upon radiation.Lactate sensors life time is reduced.
Specifications Working Electrode
Platinum Covered with Enzyme Membrane
