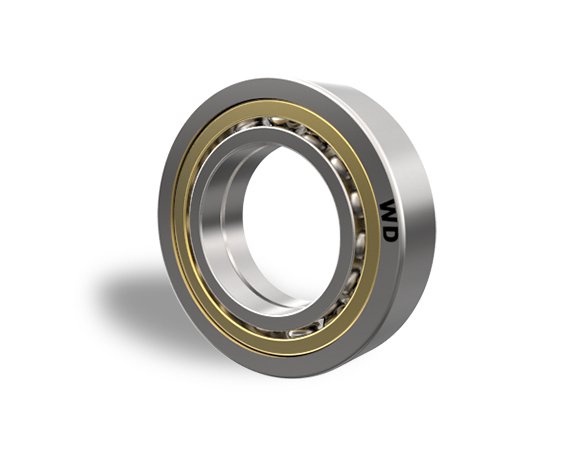

Advanced Four Point Contact Ball Bearings 70mm-150mm
Advanced Four Point Contact Ball Bearings 70mm-150mm
SKU:ANG-f21e88
High-performance Four Point Contact Ball Bearings for heavy-duty industrial use. Bore Diameter: 70mm, Load Rating: 184 kN (Dynamic), Speed: 3600 rpm.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Advanced Four Point Contact Ball Bearings 70mm-150mm
$189.99
Quantity: 1
Claim Your Seller Account
Advanced Four Point Contact Ball Bearings 70mm-150mm
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Four Point Contact Ball Bearings are precision-engineered for optimal performance in high-load applications, featuring a Bore Diameter of 70mm, Outside Diameter of 150mm, and a robust Load Rating of 184 kN (Dynamic) and 165 kN (Static). These bearings have a Grease Limiting Speed of 3600 rpm and can work efficiently in diverse industrial settings. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors.
Product Specifications

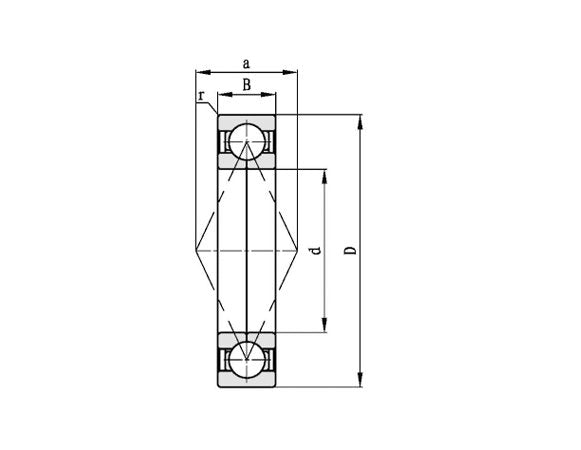

Boundary Dimensions Bore Diameter
70 mm
Boundary Dimensions Minimum Dimension R
2.1 mm
Boundary Dimensions Outside Diameter
150 mm
Boundary Dimensions Overall Bearing Width
35 mm
Limiting Speed Grease Limiting Speed
3600 rpm
Limiting Speed Oil Limiting Speed
4900 rpm
Load Rating Dynamic Cr Load Rating
184 kN
Load Rating Static Cor Load Rating
165 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
138 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
82 mm
Specifications Approximate Mass
3.25 kg
Specifications Distance Of Working Points A
77 mm
