Advanced Gantry High Speed Milling Machine
Advanced Gantry High Speed Milling Machine
SKU:HIG-0eebf4
Achieve precision and performance with the Advanced Gantry High Speed Mill. High-speed spindle, large table, and automation integration for top productivity.
Regular price
$25,999.99
Regular price
Sale price
$25,999.99
Unit price
per
Initiate Order
Advanced Gantry High Speed Milling Machine
$25,999.99
Quantity: 1
Claim Your Seller Account
Advanced Gantry High Speed Milling Machine
$25,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advanced Gantry High Speed Mill is a cutting-edge industrial solution designed for precision machining in high-demand environments. With a maximum spindle speed of 30,000 rpm and a spindle motor power ranging from 10 kW to 13 kW, this machine ensures exceptional performance and efficiency. Its large working table size of 540 x 650 mm and maximum load capacity of 300 kg offer versatility for diverse machining needs. Equipped with AC servo motors and a rapid traverse of 18 m/min, it delivers high accuracy and productivity for application-driven tasks. Experience the integration of solutions and automation for utmost performance with this innovative milling machine.
Product Specifications
Features 0
High Accuracy: Economical Position High Productivity: Application DrivenHigh Efficiency: Utmost Performance Integration, Solution and Automation
Note 0

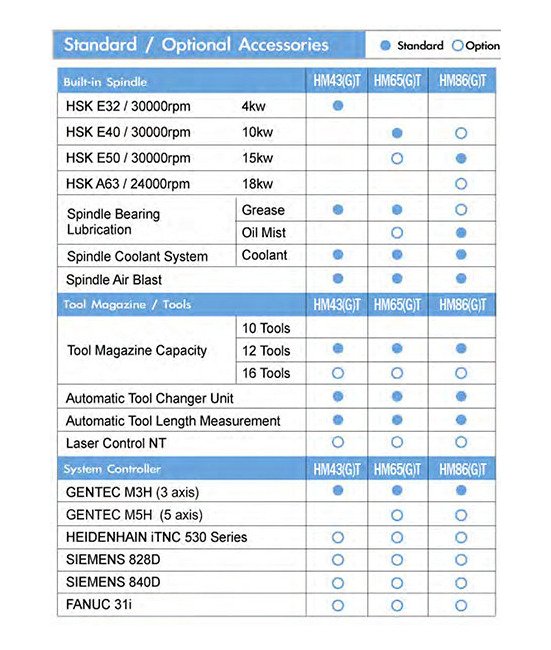

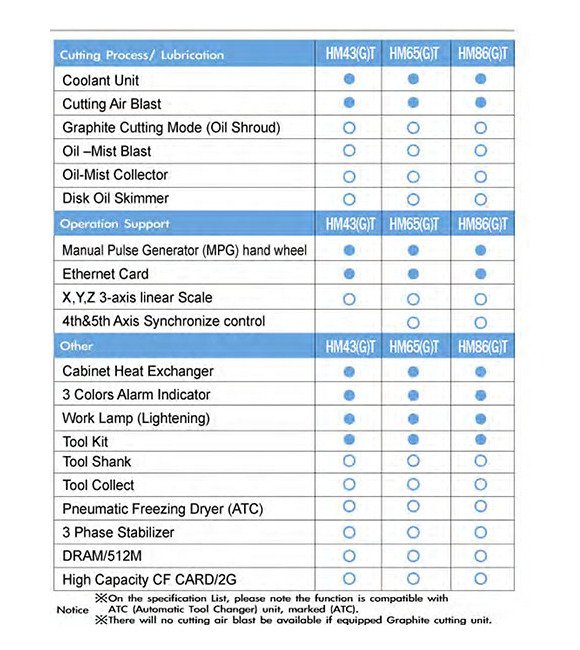

G means equipped graphite cutting unit.T means equipped ATC unit.
Specifications Distance From Table Surface To Spindle Nose
150 to 450 mm
Specifications Maximum Load Of Table
300 kg
Specifications Maximum Spindle Speed
30000 rpm
Specifications Maximum Total Power Consumption
24 kV·A
Specifications Net Weight
4300 kg
Specifications Rapid Traverse X Y Z
18 m/min
Specifications Spindle Motor Power S1
10 kW
Specifications Spindle Motor Power S6
13 kW

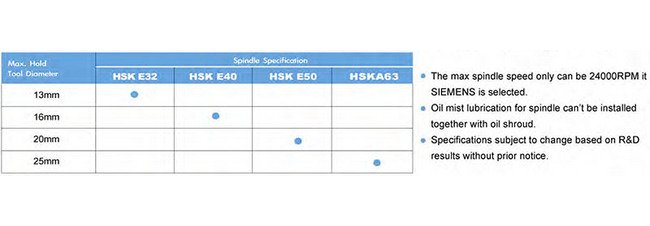

Specifications Spindle Taper
HSK E40
Specifications Travel X X Y X Z
500 x 600 x 300 mm
Specifications T Slot
16 x 5 x 100 mm
Specifications Working Table Size
540 x 650 mm
Specifications Work Feed
10 m/min
Specifications X Y Z Axis Servo Motor
AC servo motor
