Advanced Heavy Duty Container Dumper - HDDP Series
Advanced Heavy Duty Container Dumper - HDDP Series
SKU:CON-5cbcde
Experience unmatched reliability and durability with the Advanced Heavy Duty Container Dumper from HDDP Series. Ideal for high-speed, heavy-duty applications.
Regular price
$5,699.00
Regular price
Sale price
$5,699.00
Unit price
per
Initiate Order
Advanced Heavy Duty Container Dumper - HDDP Series
$5,699.00
Quantity: 1
Claim Your Seller Account
Advanced Heavy Duty Container Dumper - HDDP Series
$5,699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

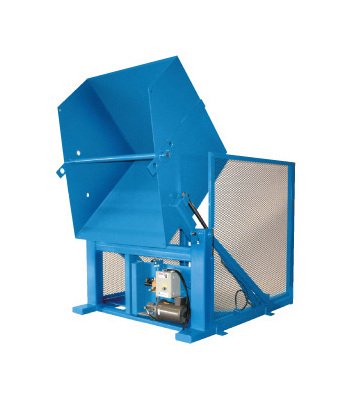

The Advanced Heavy Duty Container Dumper from the HDDP Series is designed for high-volume applications that demand reliability and strength. With a robust construction and continuous duty motors, this dumper effortlessly handles sticky materials needing frequent agitation. Its 135-degree tilt capability, machine-grade cylinders, and UL-approved controllers ensure smooth operation. Built to last with ISO 9001:2015 certification and a 10-year warranty, this dumper is a top choice for industrial settings.
Product Specifications
Accessories Accessories

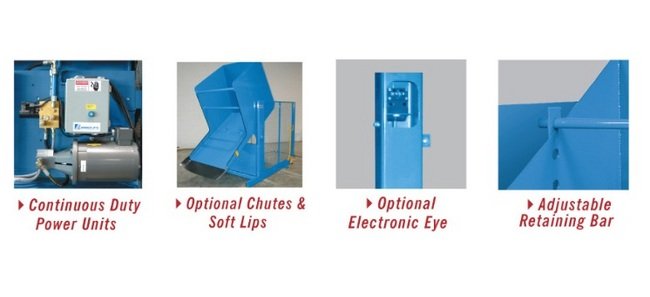

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Additional Information Additional Information
These Heavy-Duty container dumpers are ideal for tough applications. Inquire about our industrial dumpers today.
Note Note
Made in USA.
Note To Developer Note To Developer
The table below is for placement only and is the Standard Dumpers Spec Chart. You can use it to edit or deleted it and make a new Spec Chart for HDDP.
Special Features And Benefits Special Features And Benefits
Full 135 degree tilt.Machine grade double acting cylinders with spherical rod ends.Continuous duty motorsControllers are Underwriter Laboratory approved assemblies.All bearings are lifetime lubricated.

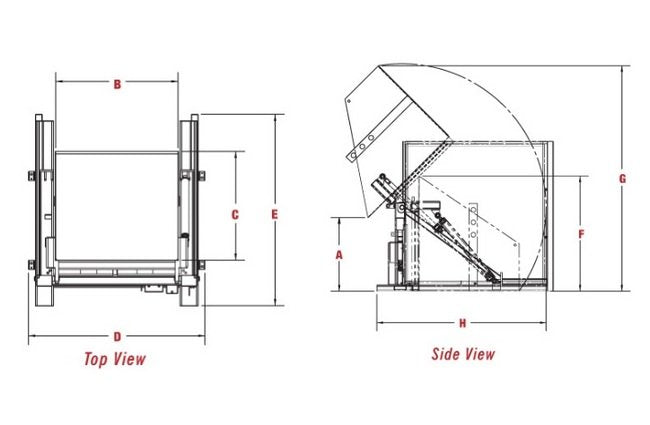

Specifications Approximate Weight
1800 lb
Specifications Arc Height G
98 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
55 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
48 in
Specifications Dump Height A
36 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
5 hp
Specifications Overall Length E
73 in
Specifications Overall Width D
72 in
Specifications Series
HDDP
Specifications Speed
36 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
70 in
