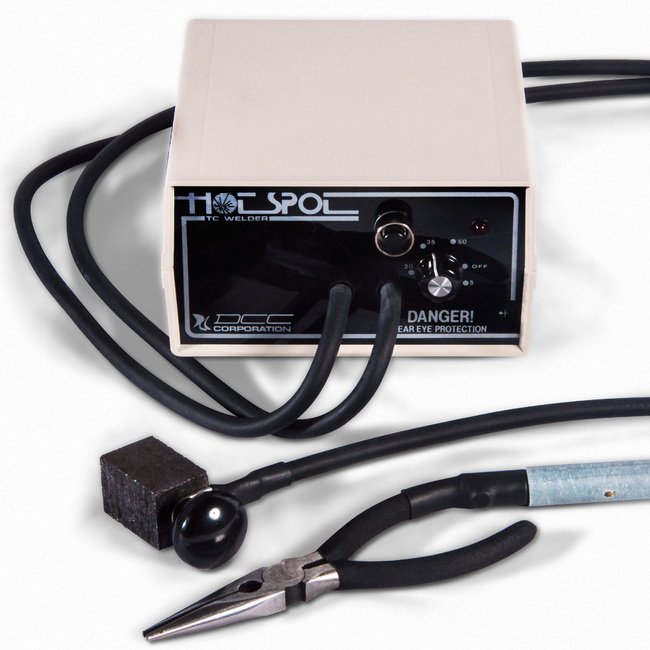

The Advanced HotSpot Thermocouple Welder is a cutting-edge solution for thermocouple fabrication and attachment needs. Offering precise control with voltage ratings of 120V and 220V, this welder can fuse standard thermocouple wires into freestanding beads and weld them securely to any base metal. With stored weld energy ranging from 5 to 50 watt/seconds and a cycle time that allows for 5 to 10 welds per minute, depending on the energy setting, this tool is efficient and versatile. Its easy-to-use controls, indicators, and overload protection features ensure safe and reliable operation. The HotSpot welder is compliant with federal procurement standards and is a valuable addition to any research facility, industrial setting, or educational institution.
Product Specifications
Accessories Accessories

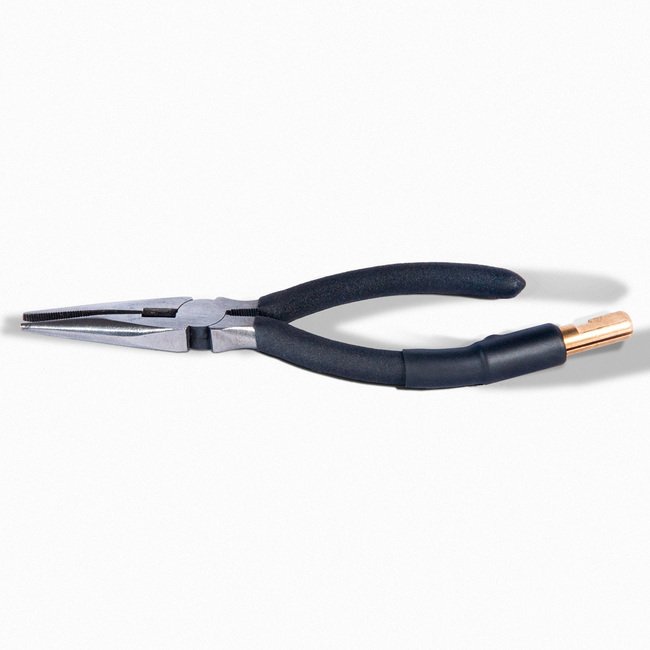

1200, Wraparound Field Cover | 9012-1, Pliers, Mini
Controls Indicators And Overload Protection Controls
Provides energy adjustment control, and visual and audio indication of weld charge cycle completion.
Controls Indicators And Overload Protection Controls Indicators
The power level available for welding is set by the position of the front control knob. This control also functions as the on/off switch. The knob is calibrated in Watt seconds or Joules. The maximum available power is approximately 50-Watt seconds. The control actually regulates the voltage to which the energy storage capacitor is charged. The stored energy is proportional to the square of the voltage, and the voltage can be varied between 15V and 80V. Increasing the setting of the control knob will cause the capacitor to be charged to the higher level. However, decreasing the setting will not reduce the value already stored, so a welding cycle will always release an energy pulse equal to the highest setting since last recent discharge. When the energy storage capacitor has been charged to the level set by the control knob, the front panel LED and internal sounder are activated. These inform the operator that the unit is ready for another cycle. The sounder also helps to conserve battery energy during portable operation by reminding the operator that the welder had been left on. A circuit breaker protects against overloads. The circuit breaker opens the low voltage AC/DC supply if excessive current is being drawn. A 1/4 Amp fuse mounted on the internal circuit board is in series with the AC power cord.
Description Description
The HotSpot Thermocouple Attachment Welder is designed to help solve your thermocouple fabrication and attachment problems. The welder generates an electric arc for fusing standard couple elements into freestanding beads and welding them to any thickness base metal. Visual and sonic indicators alert operator when the welder has cycled and is at the user selected power level. The system is powered directly from the AC line through a step-down transformer, or from a gel type battery, which provides power for a few hundred welds off-line. The battery is automatically recharged whenever the unit is connected to AC power.The power level available for welding is set by the position of the front of the control knob. This control also functions as the on/off switch. The knob is calibrated in Watt seconds or Joules. The maximum available power is approximately 50-Watt seconds. The control actually regulates the voltage to which the energy storage capacitor is charged. The stored energy is proportional to the square of the voltage, and the voltage can be varied between 15V and 80V. Increasing the setting of the control knob will cause the capacitor to be charged to thehigher level. However, decreasing the setting will not reduce the value already stored, so a welding cycle will always release an energy pulse equal to the highest setting since last recent discharge.When the internal circuitry has charged the energy storage capacitor to the level set by the control knob, the front panel LED and internal sounder are activated. These inform the operator that the unit is ready for another cycle. The sounder also helps to conserve battery energy during portable operation by reminding the operator that the welder had been left on.A circuit breaker protects against overloads. The circuit breaker opens the low voltage AC/DC supply if excessive current is being drawn. A 1/4 Amp fuse mounted on the internal circuit board is in series with the AC power cord.
Easy To Use Easy To Use
The HotSpot Thermocouple Attachment Welder is designed to help solve your thermocouple fabrication and attachment problems. The welder generates an electric arc for fusing standard couple elements into freestanding beads and welding them to any thickness base metal. Visual and sonic indicators alert operator when the welder has cycled and is at the user selected power level. The system is powered directly from the AC line through a step-down transformer, or from a gel type battery, which provides power for a few hundred welds off-line. The battery is automatically recharged whenever the unit is connected to AC power.The power level available for welding is set by the position of the front of the control knob. This control also functions as the on/off switch. The knob is calibrated in Watt seconds or Joules. The maximum available power is approximately 50-Watt seconds. The control actually regulates the voltage to which the energy storage capacitor is charged. The stored energy is proportional to the square of the voltage, and the voltage can be varied between 15V and 80V. Increasing the setting of the control knob will cause the capacitor to be charged to thehigher level. However, decreasing the setting will not reduce the value already stored, so a welding cycle will always release an energy pulse equal to the highest setting since last recent discharge.When the internal circuitry has charged the energy storage capacitor to the level set by the control knob, the front panel LED and internal sounder are activated. These inform the operator that the unit is ready for another cycle. The sounder also helps to conserve battery energy during portable operation by reminding the operator that the welder had been left on.A circuit breaker protects against overloads. The circuit breaker opens the low voltage AC/DC supply if excessive current is being drawn. A 1/4 Amp fuse mounted on the internal circuit board is in series with the AC power cord.
Specifications California Energy Compliant Option
Yes
Specifications Cycle Time
Can perform 5 to 10 welds per minute, depending on energy setting.
Specifications Depth
6.25 inches
Specifications Height
3.25 inches
Specifications List Price
745.00 USD
Specifications Power
Will operate from AC line power or self-charging internal battery. 120 VAC 60 Hz (220 VAC 50 Hz optional)
Specifications Product Type
Thermocouple Welders
Specifications Stored Weld Energy
5 to 50 watt/sec
Specifications Voltage Rating
120 V | 220 V
Specifications Weight
6.25 lbs
Specifications Weld Capability
Welds wire pairs of #24; gauge or finer (#20; for J, K & E)
Specifications Width
6 inches
