Advanced Hybrid and Battery Drive Sweeper/Scrubber - CS7010 4537 lb GVW
Advanced Hybrid and Battery Drive Sweeper/Scrubber - CS7010 4537 lb GVW
SKU:CS7-0a0a0c
Revolutionize cleaning operations with the Advanced CS7010 Hybrid Sweeper/Scrubber for superior performance and eco-friendly solutions.
Regular price
$52,999.99
Regular price
Sale price
$52,999.99
Unit price
per
Initiate Order
Advanced Hybrid and Battery Drive Sweeper/Scrubber - CS7010 4537 lb GVW
$52,999.99
Quantity: 1
Claim Your Seller Account
Advanced Hybrid and Battery Drive Sweeper/Scrubber - CS7010 4537 lb GVW
$52,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

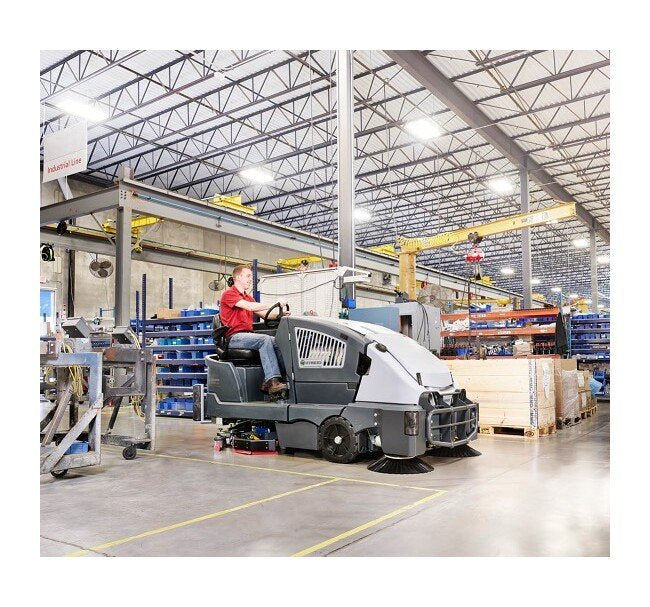

The CS7010 Hybrid and Battery Drive Sweeper/Scrubber offers a revolutionary cleaning solution for warehouses, manufacturing plants, stadiums, universities, parking ramps, and more. With a sweeping path of 61 inches, 400 lb scrub pressure settings, and a Kubota D1305 29 hp power system, this machine ensures high-performance cleaning while meeting environmental standards like ETV and CE. Its innovative features, such as DustGuard™ technology, EcoFlex™ System, Hybrid Technology, and SmartFlow™ control, provide efficient, eco-friendly, and cost-effective cleaning operations.
Product Specifications
Additional Information
Kubota® Industrial EngineRugged industrial engine design offering superior operating lifeBest in industry quiet operationGear-driven valve train eliminates timing belts or chains, improving reliability and reducing maintenance costsReach a new standard of cleaning power.
Dimensionsweightsoundenvironmental Empty Weight
3,511 lb | 1,593 kg
Dimensionsweightsoundenvironmental Gross Vehicle Weight Gvw
4,537 lb | 2,058 kg
Dimensionsweightsoundenvironmental Height
59 in | 150 cm
Dimensionsweightsoundenvironmental Height With Low Clearance Ove
79 in | 201 cm
Dimensionsweightsoundenvironmental Height With Standard Overhead
82 in | 208 cm
Dimensionsweightsoundenvironmental Length
103 in | 262 cm
Dimensionsweightsoundenvironmental Minimum Aisle Turn
104 in | 264 cm
Dimensionsweightsoundenvironmental Sound Level Iec60335 2 72
81 dBA
Dimensionsweightsoundenvironmental Water Ingression
All Electric Drive Motors and Actuators Rated IP55 For Water Washdown
Dimensionsweightsoundenvironmental Width
48 in | 122 cm
More Effective Cleaning
DustGuard™Patented DustGuard™ is proven to reduce airborne dust generated by side broom sweeping. An ultra fine fog suppresses fugitive dustEcoFlex™ SystemEcoFlex™ System with interchangeable dual detergent cartridges are refillable with your favorite brand of detergentsUltraWeb® NanofilterHigh-capacity Donaldson PowerCore® UltraWeb® nanofilter synthetic media filter with MERV 13 rating with a variable-frequency shaker. Provides superior dust/dirt holding capacity in a more compact package for longer filter life and improved dust control compared to conventional pleated filtersHybrid TechnologyThe CS7010 delivers unparalleled performance, while replacing power-hungry, high-maintenance hydraulic systems with efficient, state-of-the-art Electric Drive technologyIntuitive Control PanelIntuitive controls with OneTouch™ operation reduce training time, improve productivity and deliver more consistent cleaning resultsSmartFlow™SmartFlow™ adjusts solution flow with the machine’s speed, using water and chemicals. Proportionally higher productivity with fewer dump and refill cycles per tankful
Note
Specifications are subject to change without notice.CS7010 models shown in photos may feature optional accessories
Power And Propulsion Systems Note For Power System
Meets EPA emission standards under 40 CFR 1039.625
Power And Propulsion Systems Power System
Kubota® D1305: 3 cyl., 1.26 L 29 hp (21.7 kW)
Power And Propulsion Systems Propulsion System
Variable Speed Brushless A/C Drive
Power And Propulsion Systems Scrubbingsweeping Gradeability
17.6 % | 10 º
Power And Propulsion Systems Sweepingscrubbing Operational Run T
15 hrs. with 9.2 gal (35 L) Tank
Power And Propulsion Systems Sweepingscrubbing Propel Speed With
3.5 mph | 5.6 km/h
Power And Propulsion Systems Transport Gradeability At Gross Wei
21 % | 12 º
Power And Propulsion Systems Transport Propel Speed Variable
5.5 mph | 8.9 km/h
Safer Cleaning
Speed reductionAutomatic speed reduction in turns for improved safety and reduced risk of impact damageErgonomic operator compartmentThe CS7010 has a fully adjustable seat and tilt steering
Scrubbing And Recovery Systems Brushes Disc
3 x 17 in | 43 cm
Scrubbing And Recovery Systems Recovery Tank Capacity
75 gal | 285 L
Scrubbing And Recovery Systems Recovery Vacuum Waterlift
Dual Vac Fan Motors Capable of 65 in. (165 cm) Waterlift
Scrubbing And Recovery Systems Scrubbing Coverage Rate Per Hour
118,600 ft² | 11,000 m²
Scrubbing And Recovery Systems Scrubbing Path
48 in | 122 cm
Scrubbing And Recovery Systems Scrub Pressure Settings
Three Scrub Pressure Settings up to 400 Lb (182 Kg) of Down Force at Maximum Setting
Scrubbing And Recovery Systems Solution Tank Capacity
75 gal | 285 L
Simpler Cleaning
Pivoting Scrub DeckRetractable 4 inch (10 cm) offset disc deck enhances edge scrubbing and resists damage from accidental impactMaxAccess™We designed the CS7010 to provide quick access to all vital systems for easier inspection and maintenance
Sweeping System Dustguard Tank Capacity
29 gal | 110 L
Sweeping System Dust Control System Filter Area
115 ft² (10.7 m²) Donaldson High-Capacity PowerCore® UltraWeb® Filter W/synthetic Media. Variable Frequency Automatic Filter Shaker
Sweeping System Hopper Capacity
7 ft³ | 198 L | 300 lb | 136 kg
Sweeping System Main Broom
36 x 12.2 in | 90 x 31 cm
Sweeping System Maximum Hopper Dump Height
60 in | 152 cm
Sweeping System Sweeping Coverage Rate Per Hour
146,400 ft² | 13,600 m²
Sweeping System Sweeping Path With Dual Side Brooms
61 in | 154 cm
Technical Specs Brands
Advance by Nilfisk®
Technical Specs Configuration
Independent front dry sweeping w/dust control and rear scrubbing functionsElectronically controlled electric drives for all sweeping and scrubbing functionsElectrically driven hydraulic power unit for hopper raise/lower functions
Technical Specs Model
CS7010 Diesel Hybrid
