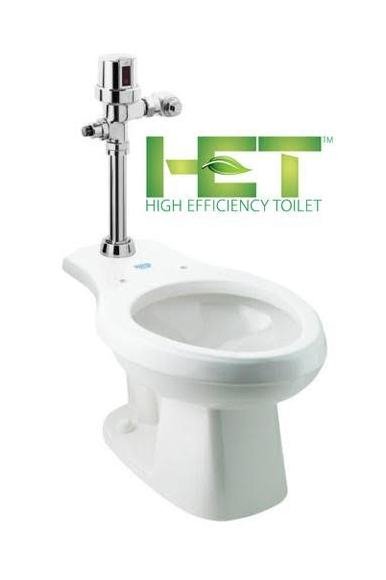

The Advanced HYBRIDFLUSH® Automatic Flushing Check Valve is a cutting-edge solution for high efficiency toilets and flush valves. It operates on hybrid automatic/manual mode using four AA alkaline batteries with a battery life of over 3 years. Featuring a patented BRV® and Gear Motor Drive, this system ensures hands-free infrared sensor activation, water conservation, and vandal-resistant design. With compliance to ASSE 1037-2015, ASME A112.1035-2015, and CSA B125.37-15 standards, this product guarantees exceptional quality and efficiency for institutional and government procurement.
Product Specifications
Specifications Arming Delay Time
5 s
Specifications Battery Life
>3 year
Specifications Battery Type
Four AA Alkaline Batteries
Specifications Compliance And Certifications
American Society of Safety Engineers (ASSE) 1037-2015American Society of Mechanical Engineers (ASME) A112.1035-2015Canadian Standards Association (CSA) B125.37-15
Specifications Flush Delay
3 s
Specifications Flush Mode
After Every Use
Specifications Ghost Flush
Once Every 24 Hours from Last Flush
Specifications Manual Override
Mechanical Flush Button or None
Specifications Maximum Static Pressure
80 psi
Specifications Minimum Flowing Pressure
25 psi
Specifications Minimum Flow Rate
25 gpm
Specifications Operating Water Pressure
15 to 100 psi
Specifications Operation
Hybrid (Automatic/Manual)
Specifications Outer Casing
Standard-Chrome Metal
Specifications Sensing Range
18 to 30 in | 45 to 75 cm
Specifications Sensor Angle
Adjustable Angle
Specifications Sensor Type
Infrared
Specifications Specifications
Patented BRV® and Gear Motor DriveHands Free Infrared Sensor ActivationVandal and Water Resistant DesignChrome Plated All Metal HousingQuiet OperationTrue Mechanical Override (Side) *Mechanical Button/Handle Works When Batteries are DrainedOperates on (4) âAAâ Alkaline Batteries (Included)Battery Life - 3+ YearsâLow Batteryâ Blinking LED IndicatorEasy Battery Replacement-No Water Shut Off NecessaryAdjustable Sensor AngleAdjustable Sensor DistanceOptional Three (3) Second Flush Delay ModeOptional 24-Hour Flush ModeUses Proprietary Silicone Diaphragm with Filtered Bypass1 Inch (in) I.P.S. Angle StopAdjustable TailpieceHigh Back Pressure Vacuum Breaker with Single Piece Hex Coupling NutSpud Coupling and Flange for 1-1/2 Inch (in) Top SpudSweat Solder Kit and Wall Flange with Set ScrewHigh Efficiency For Water Conservation
Specifications The Hybridflush Advantage
The HYBRIDFLUSH® is a revolutionary full-featured automatic/manual flush valve system. The HYBRIDFLUSH® incorporates a unique patented mechanism that allows for automatic/manual operation for unsurpassed reliability. The patented HYBRIDFLUSH® design allows for the original flush handle or push button to be used as an alternate flush option that is independent of the battery power. The HYBRIDFLUSH® by Advanced Modern Technologies Corporation is the most efficient, economical, and complete automatic flush valve system on the market.
