Advanced IGBT Inverter PowerStack - 450A/1200V 3-Phase Bridge
Advanced IGBT Inverter PowerStack - 450A/1200V 3-Phase Bridge
SKU:INT-94f18a
Versatile Advanced IGBT Inverter PowerStack for reliable power solutions in various applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Advanced IGBT Inverter PowerStack - 450A/1200V 3-Phase Bridge
$2,999.99
Quantity: 1
Claim Your Seller Account
Advanced IGBT Inverter PowerStack - 450A/1200V 3-Phase Bridge
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advanced IGBT Inverter PowerStack is a versatile power assembly suitable for a wide range of applications, including renewable energy, motor controls, and more. With a three-phase bridge configuration, this power stack offers integrated cooling, various driver options, and safety features such as overcurrent protection and fault annunciation. Operating at frequencies up to 20kHz, it is built with a low inductance laminated bus structure, optically isolated gate drive interfaces, and extensive protection features. Ideal for institutional and government buyers seeking reliable and efficient power solutions.
Product Specifications
Additional Information Additional Information

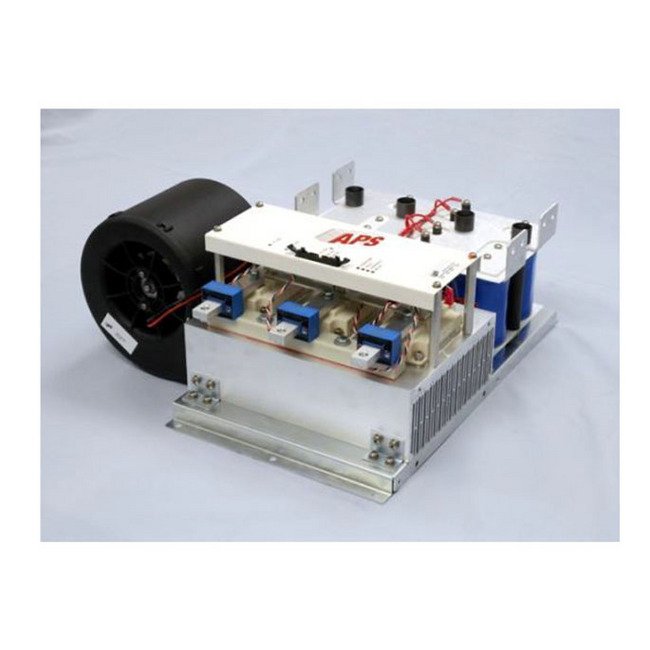

To operate at high switching frequencies, the IAP450T120H PowerStack utilizes a low inductance laminated bus structure, optically isolated or fiber optically coupled gate drive interfaces, isolated gate power supplies and a DC-link capacitor bank.The IAP450T120H PowerStack provides built in protection features including: Over Voltage, Under Voltage lockout, Over Current, Over Temperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAP450T120H PowerStack. Options include: a choice of converter frontends, rectifier, half or full SCR control, with or without SCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall effect current transducers.The IAP450T120H PowerStack is rated to maximum input voltages up to 800 VDC, switching frequencies to over20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Features Features

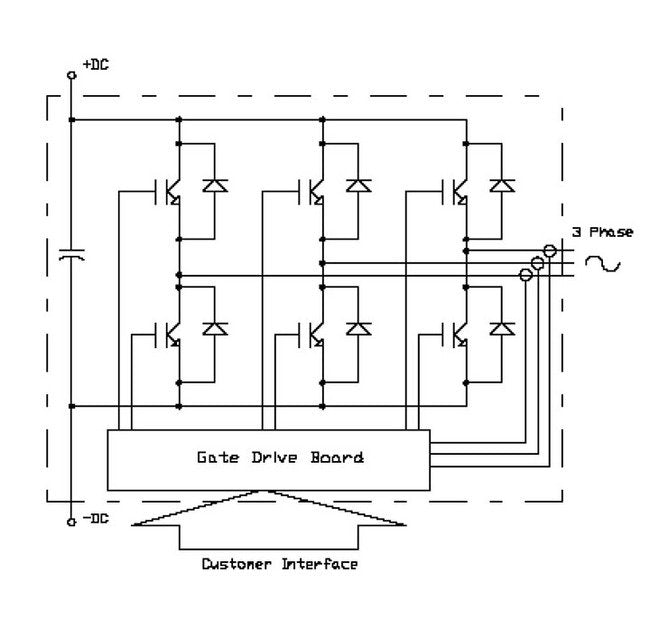

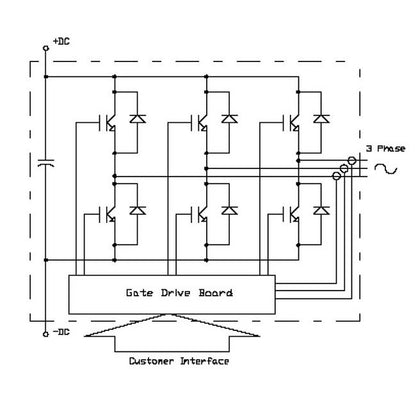

Multi-Function Power Assembly Protective circuitry with fail-safe opto-isolated fault annunciation, including: Over Current Over Voltage Short circuit P.S. Under Voltage Over Temperature Opto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunity Integrated cooling with temperature sensors and feedback
Gate Drive Board Electrical Characteristics Maximum Overtemperat
82 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
78 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
675 A
Gate Drive Board Electrical Characteristics Overtemperat
80 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
4000 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +175 ºC
General Operating Temperature Top
-25 to +85 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
800 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
450 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
450 ns
Technical Specs Brands
Applied Power Systems, Inc.
Technical Specs Depth
17.56 in
Technical Specs Direct Current Dc Bus Voltages
800 V
Technical Specs Fault Output Supply Voltage
30 V
Technical Specs Height
8 in
Technical Specs Pulse Width Modulation Pwm Signal Input Voltage
15 V
Technical Specs Regulated Power Supply 15 Volt V Voltage
18 V
Technical Specs Unregulated Power Supply 24 Volt V Voltage
30 V
Technical Specs Width
11.00 in
