Advanced Indexing Turntable Machine
Advanced Indexing Turntable Machine
SKU:EMP-690c45
Enhance productivity and reduce cleaning costs with our programmable Advanced Indexing Turntable Machine designed for efficient cleaning of pistons.
Regular price
$4,999.00
Regular price
Sale price
$4,999.00
Unit price
per
Initiate Order
Advanced Indexing Turntable Machine
$4,999.00
Quantity: 1
Claim Your Seller Account
Advanced Indexing Turntable Machine
$4,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

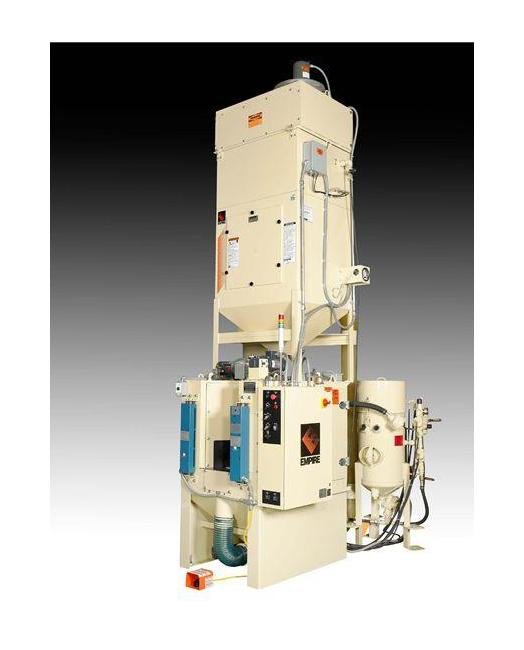

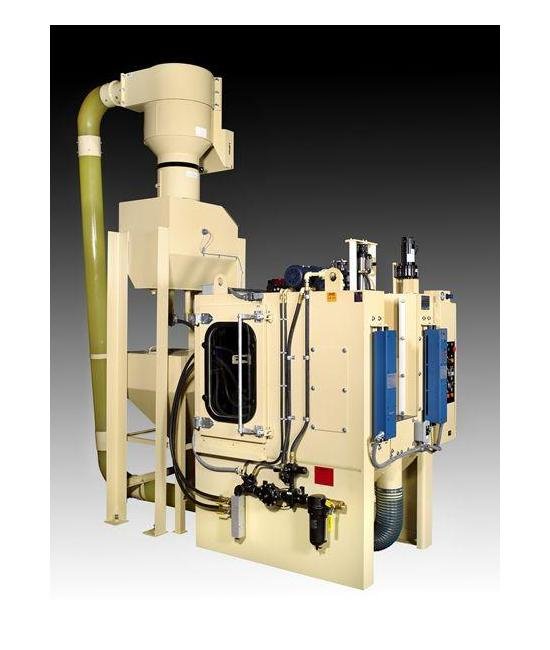

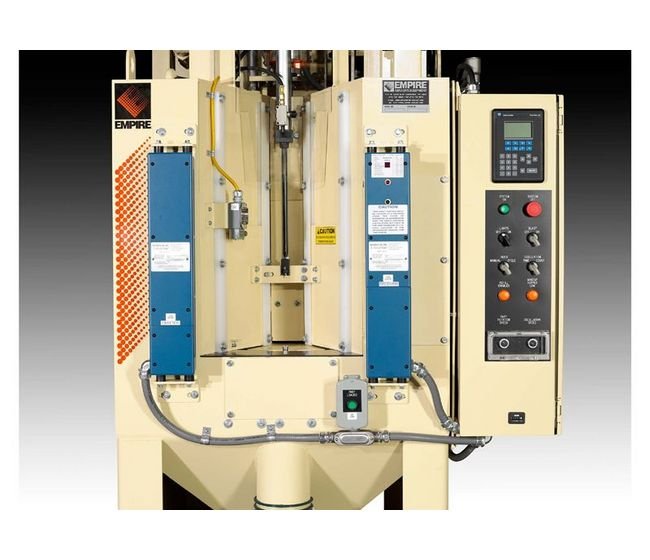

The Advanced Indexing Turntable Machine is a superior solution for reducing per-unit cleaning costs on piston rebuilds by over 30% compared to traditional methods. Featuring programmable control, this system coordinates 16 blast guns to ensure thorough coverage and fast cleaning in a single pass. With versatile features like adjustable nozzle configurations, horizontal and vertical oscillators, and customizable part-rotation speeds, this machine offers unexcelled performance tailored to your specific needs. Equipped with noise-reducing pneumatic doors, sound attenuators, and media-replenishing systems, this machine enhances productivity while maintaining a cleaner and safer work environment. Choose from multiple models and customizable options to fit your operational requirements.
Product Specifications
Specifications Capacity Per Station
20 lb
Specifications Diameter
20 in
Specifications Indexing Turntable Machine Features
Because of their versatility, our indexing turntables handle a wide range of high-production jobs at a very attractive cost. Some of the features and options contributing to the unexcelled performance of our indexing turntables are listed below. We can tailor these machines to meet your needs with a minimum of custom engineering.Machines can be equipped with a variety of nozzle/gun configurations ranging from infinitely adjustable holders to horizontal and/or vertical oscillators interfaced with programmable controls.Part-rotation and nozzle-oscillation speeds are adjustable to accommodate a variety of part sizes.Standard machines include an exit vestibule, equipped with a blow-off manifold, and an inlet vestibule. These features separate the operator from the noisy blast environment while increasing production by cleaning the part of residual media and dust during the blast cycle.Pneumatic, vertically sliding doors speed up loading, constrain blast debris and reduce noise when equipped with a sound attenuator. You have the choice of air-blast systems powered by pressure, continuous pressure or suction. A pull-down shade protects the viewing window in the maintenance-access door. Quarter-inch-thick neoprene lining protects the interior of the cabinet, prolonging the life of metal surfaces. A large access door simplifies maintenance. An automatic media-replenishing system boosts productivity by minimizing downtime for refills and returning clean media to the system for more consistent air-blast results. Replaceable media-return duct features urethane to prolong tube life and reduce maintenance costs.Optional infrared curtain starts and stops blasting automatically. The curtain frees operators to perform other tasks while blasting is in progress. Door, latch and hinges are heavy duty, built to last. Select from three standard models: Empire's 20" table with a space-saving footprint or larger 36" and 48" indexing machines.Specify 6, 12, 18 or 24 work stations depending on the size of the turntable you choose. Machines can be designed for pick-and-place or robotic loading and unloading of work pieces with the addition of a precision turntable and infrared curtain.Custom fixtures and masking are available to meet special application requirements.
Specifications Maximum Part Size Dia X Height
6 x 14 in
Specifications Number Of Stations
6/12
Specifications Pressure Nozzles
0 to 6
Specifications Suction Guns
0 to 8
