Advanced Infrared Video Thermometer
Advanced Infrared Video Thermometer
SKU:INF-585cf7
Exceed precision with the Advanced Infrared Video Thermometer. Explore 250-800°C range with video & laser precision.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Advanced Infrared Video Thermometer
$899.99
Quantity: 1
Claim Your Seller Account
Advanced Infrared Video Thermometer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

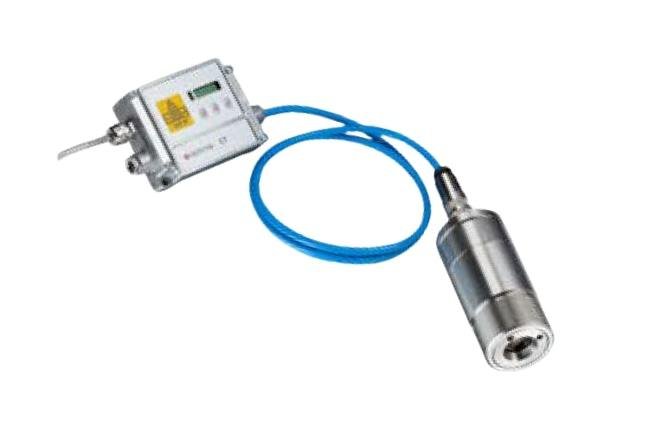

Experience cutting-edge temperature measurements with the Advanced Infrared Video Thermometer from Optris Infrared Sensing. This high-precision device boasts a temperature range of 250 to 800 degrees Celsius, with a patented cross hair laser and video camera for precise target visualization. Its rugged design, interchangeable sensing head, and exceptional accuracy make it ideal for industrial, research, and government applications.
Product Specifications
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Additional Alarm Output Current Open Collector
50 mA
Specifications Additional Alarm Output Voltage Open Collector
24 V
Specifications Cable Length Options
5 m | 10 m | 16.4 ft | 32.8 ft
Specifications Classificationspecial Features
Two-Piece Sensor with Electronic Box for High Temperature Measurement of Metals, Video Camera and Cross Hair Laser
Specifications Detector
Intended InGaAs
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Cable Shortening
6 m | 19.7 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Note For Temperature Ranges
Scalable Via Software
Specifications Optical Resolution
150:1
Specifications Response Time At 90 Percent
1 ms
Specifications Sensing Head Exchangeable
+ CT
Specifications Sighting
Video Camera and Cross Hair Laser
Specifications Smallest Spot Cf Optics At 35 Inch In
0.02 in
Specifications Smallest Spot Cf Optics At 90 Millimeter Mm
0.6 mm
Specifications Smallest Spot Sf Optics At 200 Millimeter Mm
1.3 mm
Specifications Smallest Spot Sf Optics At 79 Inch In
0.05 in
Specifications Spectral Range
1.6 µm
Specifications Standard Cable Length
3 m | 9.8 ft
Specifications Temperature Ranges
250 to 800 ºC | 482 to 1472 ºF
Specifications Temperature Resolution
0.1 K
Specifications Thread Sensing Head
M48 x 1.5
