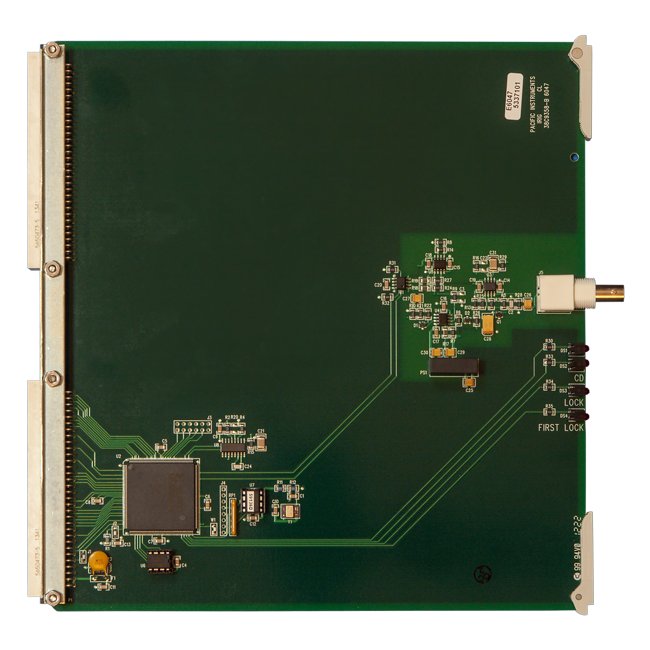

The Advanced IRIG Time Code Reader, model 6047, is a precision time reference solution designed for seamless integration with the 6000 series digital I/O modules. Supporting IRIG A, B, and G formats with 1 microsecond resolution, this reader ensures accurate time acquisition even in the event of signal loss. Featuring binary and BCD outputs, stabilized oscillator discipline, and front-mounted LEDs for quick status monitoring, it guarantees precise time synchronization for critical data acquisition applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Disciplined Clock Flywheel Aging
1 ppm/year
Disciplined Clock Flywheel Stability
2.5 ppm
General Mounting
Occupies one slot in Series 6000 enclosures.
General Temperature
0 to +50 ºC
Ordering Information Ordering Information
6047- IRIG Time Code Reader.
Outputs Accuracy
5 microseconds for IRIG A and G. 10 microseconds for IRIG B.
Outputs Format Output
Binary and BCD simultaneously available.
Outputs Resolution
1 microsecond.
Outputs Status
Status word and LEDs
Outputs Time
Hours, minutes, seconds, milliseconds and microseconds.
Overview Measurement Type
IRIG
Specifications Connectors
BNC connector for IRIG input.
Status Carrier
Indicates IRIG signal is present.
Status First Lock
Indicates that lock was achieved and flywheel clock is disciplined (synchronized).
Status Leds
Front mounted LEDs for Carrier, Lock and First Lock.
Status Lock
Indicates time output locked to IRIG input.
Status Lost Lock
Indicates the number of times lock is lost, counter cycles after 256.
Time Code Inputs Carrier Range
1 to 100 kHz
Time Code Inputs Direction
Forward
Time Code Inputs Format Input
IRIG A, IRIG B, IRIG G
Time Code Inputs Input
Amplitude Modulated.
Time Code Inputs Input Amplitude
100 mV to 10 Volts peak to peak.
Time Code Inputs Input Impedance
5K Ohms
Time Code Inputs Modulation Ratio
3:1
