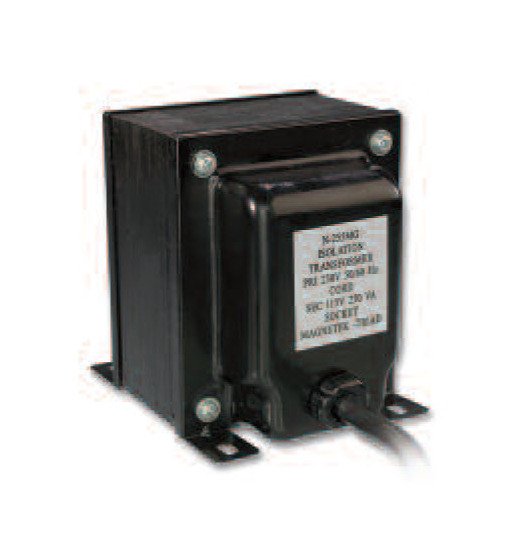

The Advanced Isolation Power Transformers from Triad are essential for ensuring equipment safety by isolating it from direct power connections. Designed to meet the stringent low leakage current standards for medical equipment, these transformers feature nonconcentrically wound coils with separate primary and secondary windings to prevent electrical connection. Equipped with a resettable circuit breaker for overload and short circuit protection, these hospital-grade transformers are available in various voltages and case types to suit diverse requirements.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket
Specifications Depth D
6 1/4 in
Specifications Height H
5 5/16 in
Specifications Mounting Depth
5 1/8 in
Specifications Mounting Hole Size
1/2 x 1/4 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
500 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
4.350 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
23.8 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Line cord, plug and receptacle are U.L. listed and verified to meet federal specifications.Connections are by leads, plugs and sockets.Hi-pot tested at 1,500 VRMS.
