Advanced Multi Door Access Control System
Advanced Multi Door Access Control System
SKU:MUL-7f685a
Enhanced Multi Door Access Controllers for efficient access control & monitoring
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
Advanced Multi Door Access Control System
$1,899.00
Quantity: 1
Claim Your Seller Account
Advanced Multi Door Access Control System
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience seamless access control with the DKS 1838 Series Multi Door Access Controllers. Ideal for small businesses, offices, and industrial sites, this system supports up to 3000 users and offers customizable settings for up to 16 entry points. With features like anti-pass back, elevator control capabilities, and an 8000-event history log, administrators have complete control over access. The system's compliance with UL 294 and ETL standards ensures reliability and safety for your facility.
Product Specifications
Additional Information Additional Information
The 90 Series was developed for easy internal installation of optional components such as entry point video camera, LCD heater and TCP/IP adapter for direct internet connections, offering a cleaner look and greater protection for the accessories. The settings of the 1830 Series can be programmed via our original Desktop/Remote Account Manager (RAM) downloadable software for PCs, or with our most advanced option - the Cloud Account Manager, which can be accessed on any browser on any computer, tablet or smartphone with an internet connection. Administrators can choose between a Cellular or VoIP connection to program with the Cloud or RAM, or a legacy POTS connection for RAM programming only. A completely turn-key access management solution, the DKS 1830 Series is backed by a nationwide dealer and support network of more than 4000 strong.A SIMPLE LITTLE BOX DELIVERS SO MUCHSeamless access for even the most complex facilities.The DKS 1838 Multi-door Access Controller is ideal for small businesses, office buildings, factories, industrial sites, apartment complexes, or for any application that requires access control and reporting capabilities. The 1838 is a 3000 user, 2-door Controller that easily expands to control up to 48 doors with wired Tracker Expansion Boards (or 24 wirelessly). This flexible System allows access control to 8000 Device Codes by means of Cards, Keypads, Wireless RF Transmitters, or with almost any 26-bit Wiegand Device. DKS Remote Call Stations can also be added to the 1838 to provide communication from an entry point to a designated phone.
Advantages Advantages
The 1838 Multi-door Access Controller is ideal for small businesses, office buildings, factories, industrial sites, apartment complexes, or for any application that requires access control and reporting capabilities. The 1838 is a 3000 user, 2-door Controller that easily expands to control up to 48 doors with wired Tracker Expansion Boards (or 24 wirelessly). This flexible System allows access control to 8000 Device Codes by means of Cards, Keypads, Wireless RF Transmitters, or with almost any 26-bit Wiegand Device.
Applications Applications
Apartment / College Residents HallsParkingCommercial / IndustrialMixed Use BuildingsMaximum SecuritySelf Storage

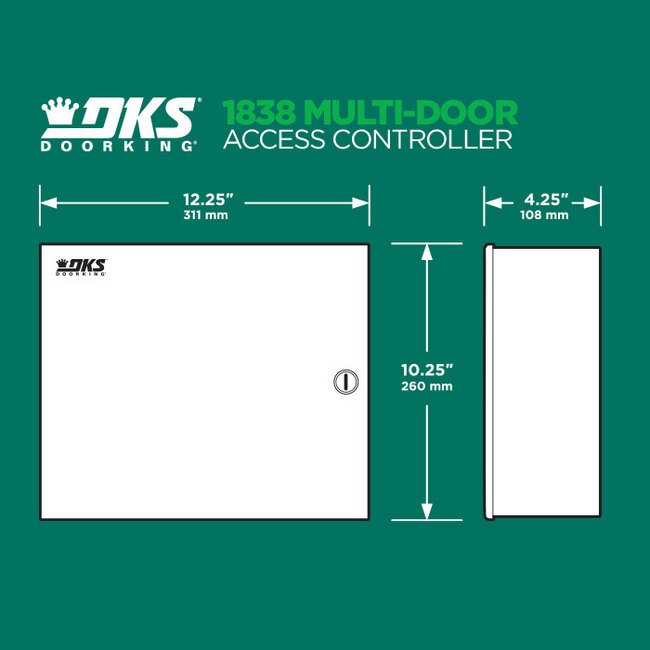

Dimensions Depth
4.25 in
Dimensions Height
10.25 in
Dimensions Width
12.25 in
Key Features Key Features
The 1838 Access Controller can be connected for voice (were applicable) and programming by any of these methods:Cellular 4G-LTE service ( Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.)VoIP (Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter. 1830-186 requires IM SERVER Client subscription.)POTS - Plain Old Telephone Service (Programming via several methods. Internet programming requires IM Server Modem subscription. DoorKing® does not recommend using a POTS line to program the access system controller. DoorKing® can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.)Live Streaming.Live TransactionsBuilt-in programming keypad.Interfaces with 2 card readers - expandable to 48 with wired tracker expansion boards (24 wirelessly).Anti-pass back.8000 event transaction buffer.31 Security (permission) levels.Database import/export capability.Built-in clock/calendar.Holiday schedule.Hold open time zones.Entry code time zones.Postal lock input.
Memory Options Memory Options
Phone Numbers & Entry Codes: 3000
Options Options
CONNECTION OPTIONS (Connection options noted will incur additional cost for required hardware and/or service subscriptions. DKS Cloud programming included at no charge with DKS connection subscriptions.)Cellular powered by AT&T 4G LTEInternet select DK VoIP or your own VoIP providerPOTS Plain Old Telephone service ( POTS connection is not recommended for programming as modem communications can no longer be guaranteed.)Tracker Expansion BoardsElevator Control Boards TCP/IP Network AdapterWireless ModemRS-232 Connecting Cable
Specifications Alternating Current Ac Power Supply
16 V
Specifications Anti Pass Back
Yes
Specifications Database Importexport Feature
Available
Specifications Elevator Control Capability
Available
Specifications Hold Open Time Zones
8
Specifications Holiday Schedule
Available
Specifications Live Transaction Capability
Available
Specifications Maximum Tracker Expansion Capability
Door Control: 3 Entry Points
Specifications Note For Maximum Tracker Expansion Capability
Expands to 48 with wired expansion boards or to 24 with wireless expansion boards.
Specifications Number Of Card Device Codes
8000
Specifications Number Of Programmable Area Codes
255
Specifications Number Of Relays
3
Specifications Number Of Security Permission Levels
31
Specifications Operating Temperature
-23 to 62 ºC | -10 to 140 ºF
Specifications Programmable Facility Codes
10
Specifications Programming
Cloud | Remote Account Manager
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 294 | Edison Testing Laboratories (ETL) Listed
Specifications Transaction Buffer
8000 Events
Technical Specifications Technical Specifications
Stores up to 3000 user names.Stores up to 255 area codes.Transaction buffer stores last 8000 events.Stores up to 8000 access card codes - dependent on system memory.31 security (permission) levels, 29 programmable with 4 time zones each.8 hold open time zones.Three anti-pass back configurations: passive, active and trap.Elevator control (Requires Elevator Control Board(s).) for up to 8 elevators, each serving 64 floors.Expandable (Requires Tracker Expansion Board(s).) to control up to 48 wired entry points (24 wirelessly).4-digit entry codes, one for each telephone number.3 form "C" dry contact relays.EEPROM memory.Two 16 VAC, 20 VA power transformers supplied.FCC (US): DUF6VT-12874-OT-TDOC (CAN): 1736 4528 A
