Advanced Multi-Line Telephone Intercom System
Advanced Multi-Line Telephone Intercom System
SKU:MUL-243ebf
Experience ultimate call control with our Multi-Line Telephone Intercom System - ideal for high-security properties with up to 1200 phone lines.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Advanced Multi-Line Telephone Intercom System
$2,499.99
Quantity: 1
Claim Your Seller Account
Advanced Multi-Line Telephone Intercom System
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Advanced Multi-Line Telephone Intercom System by DoorKing offers unparalleled control over incoming calls with the ability to interface with up to 1200 phone lines. Designed for high-security environments like apartment buildings and office complexes, this system features full-duplex communication, programmable directory codes, and enhanced call management features such as call waiting, call forwarding, and resident call down. With its compatibility with DKS telephone entry systems and resident-friendly functionalities, this system ensures seamless access control and communication for a wide range of applications.
Product Specifications
Additional Information Additional Information
The DKS 1819 is an Information Telephone System that is suited for properties where guests contact a single number for access. Visitors simply press the single CALL button to establish communication with the Doorman or Concierge and are easily identified by voice communication. Access can be granted or denied directly from the designated touch-tone telephone. Straightforward with features to suit a wide range of property requirements, the Telephone Intercom Series is backed by a nationwide dealer and support network of more than 4000 strong.
Advantages Advantages
Enhanced call down feature.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / Industrial
Key Features Key Features
Resident call down feature.Caller ID.Resident activated/deactivated call waiting.Resident activated/deactivated do-not-disturb.Resident activated/deactivated call forwarding.True full duplex communication.Interfaces with all DKS telephone entry/access control systems.Residents do not need central office (C.O.) telephone service to be connected to system.Directory codes can be programmed to numbers of your choice.No reprogramming required when residents move in or out.Double ring feature identifies lobby panel call.
Memory Options Memory Options
Dial Out Phone Numbers: 10 | Maximum Interface with Individual Phone Lines: 1200
Options Options

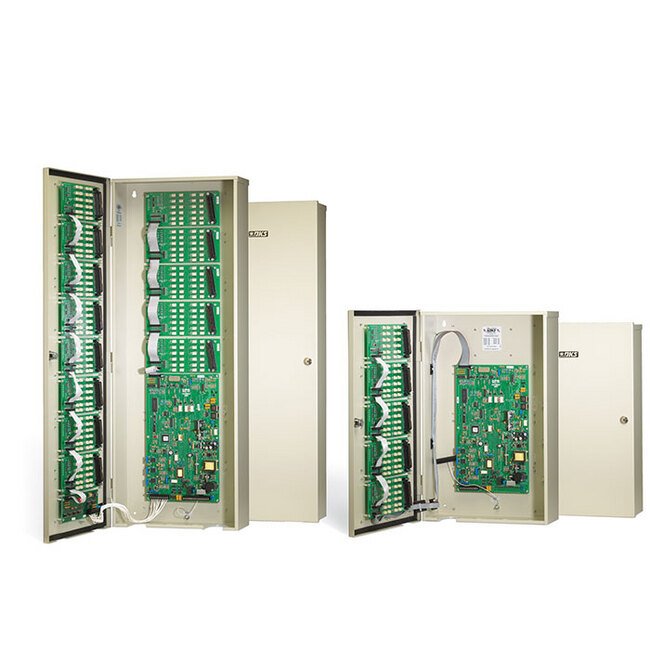

Main cabinet can house up to 9 LIB's to interface with up to 108 phone lines.Auxiliary cabinet can house up to 12 LIB's to interface with up to 144 phone lines.Additional auxiliary cabinets can be added as needed, up to 1200 phone lines for the system.Garden style cabinet will house up to 4 LIB's to interface with up to 48 phone lines.
Specifications Alternating Current Ac Power Supply
16 V
Specifications Built In Directory
No
Specifications Closed Circuit Television Cctv Camera Option
No
Specifications Communication
Full Duplex
Specifications Handset Available
No
Specifications Limited Factory Warranty
2 y
Specifications Liquid Crystal Display Lcd Programming Display
No
Specifications Mounting Type
Surface
Specifications Number Of Relays
1
Specifications Operating Temperature
-12 to 62 ºC | 10 to 145 ºF
Specifications Postal Lock Provision
No
Specifications Programmable Directory Codes
Yes
Specifications Programming
From Entry Systems
Specifications Type
Multi-line
Technical Specifications Technical Specifications

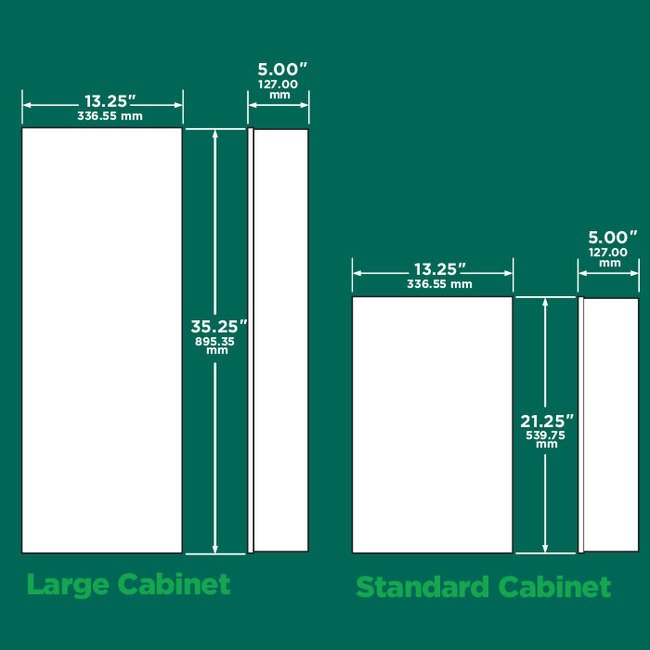

Interfaces with up to 1200 telephone lines.Full duplex communication.Stores up to 10 preprogrammed call out numbers.Doorman telephone input.Programmable directory codes.16 VAC, 50 VA power transformer (main cabinet).16 VAC, 50 VA power transformer (auxiliary cabinets).Main & Auxiliary Cabinets: 35.25 "H x 13.25 "W x 5.0 "D.Garden Style Cabinets: 21.25 "H x 13.25 "W x 5.0 "D.System requires one (1) main control or garden cabinet, one (1) line interface board (LIB), one (1) connecting cable and one (1) RJ71C phone block for every 12 phone lines that the system will interface with.
