Advanced Polypropylene Mesh Mist Eliminator

Name: Advanced Polypropylene Mesh Mist Eliminator
Brand: Coastal Technologies, Inc.
SKU: MES-044cbf
Price: 249.99 USD
Availability: OutOfStock

SKU:MES-044cbf

Enhance air filtration efficiency with our Advanced Polypropylene Mesh Mist Eliminator. High-performance, customizable solution for optimal industrial air quality.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

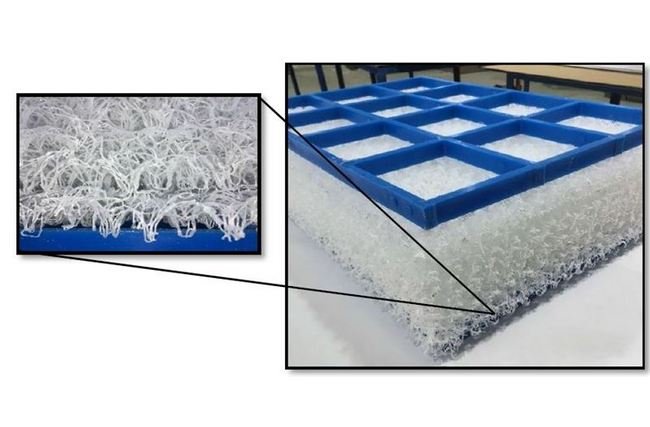

Upgrade your industrial air filtration with our Advanced Polypropylene Mesh Mist Eliminator. Crafted with high-density polypropylene, this innovative solution offers exceptional removal efficiency, with a surface area of 86.4 ft²/ft³ and 99.9% droplet capture rate. The specialized design ensures low pressure drop, high vapor capacity, and minimal liquid hold-up, making it perfect for vertical flow applications. Enjoy superior fouling resistance and anti-fouling properties, courtesy of the heavy-duty molded polypropylene grids. Customizable composite mesh pads allow tailored designs for specific requirements, meeting stringent efficiency standards. Trust in our Mist Eliminator for top-notch performance in challenging industrial environments.

Product Specifications

Technical Specifications Capacity Factorat Low Liquid Rate2k

.55

Technical Specifications Composites

Mesh pads containing two or more mesh styles can be customized for special design needs.

Technical Specifications Density

2.5 lb/ft³

Technical Specifications Description

Good Efficiency | Anti-Fouling

Technical Specifications Efficiency

99.9% of all droplets > 10 microns; with added Co-Knit layers 99.9% > 4 microns

Technical Specifications Fouling Resistance

Medium

Technical Specifications Grids

Heavy Duty Molded Polypropylene

Technical Specifications Material

Polypropylene 0.020

Technical Specifications Mesh Length

96 "

Technical Specifications Mesh Material Of Construction

Polypropylene

Technical Specifications Pressure Drop

Low (see curve)

Technical Specifications Profile Depth Draw D

6" standard (9-ply) | 4" alternate (6-ply)

Technical Specifications Surface Area

86.4 ft²/ft³

Technical Specifications Voids

95.5

Technical Specifications Width Limits

40 "
