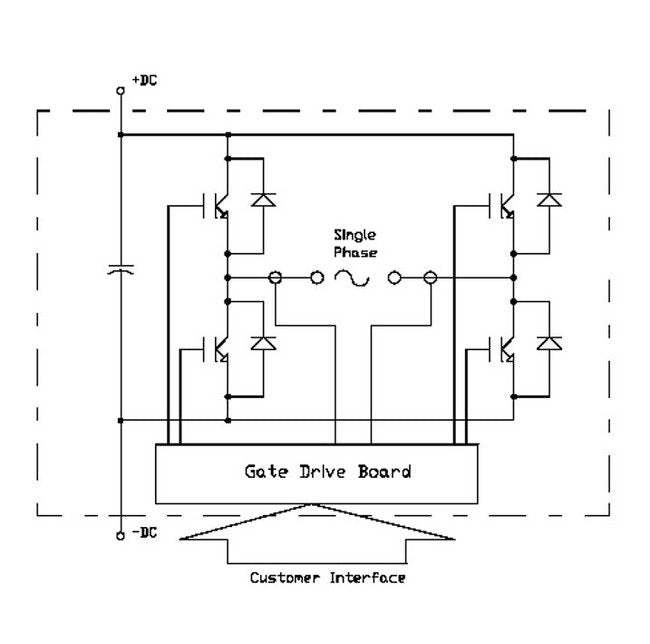

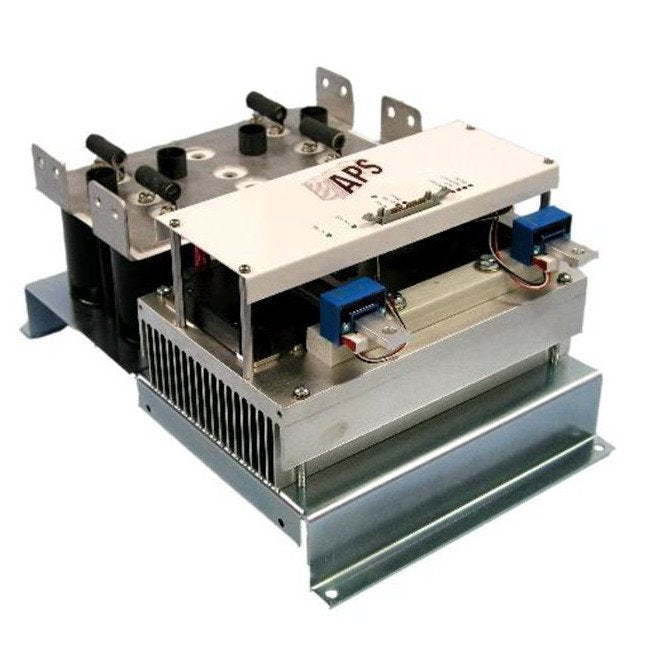

The Advanced PowerStack 150A/1200V IGBT Inverters are versatile, highly integrated power assemblies suitable for various applications such as inverters for renewable energy, motor controls, UPS systems, and more. With the capability to operate at frequencies exceeding 20 kHz, these inverters offer advanced features like low inductance laminated bus structure, optically isolated gate drive interfaces, and DC-link capacitor banks. Designed for efficiency and reliability, they come with built-in protective circuitry and cooling options for optimal performance in diverse settings.
Product Specifications
Additional Information Additional Information
The IAP150B120 PowerStack provides built in protection features including: over voltage, under voltage lockout, over current, over temperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAP150B120 PowerStack. Options include: a choice of converter front ends, rectifier, half or full SCR control, with or without SCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall Effect transducers.The IAP150B120 PowerStack is rated to maximum input voltages up to 850 VDC, switching frequencies to over 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
11 in
Compact Size Height
8 in
Compact Size Width
17.60 in
Features Features
Multi-Function Power AssemblyDC Bus Voltages to 850 VDCSnubber-less operation to 650 VDCProtective circuitry with fail-safe opto-isolated fault annunciation, including:Over CurrentOver VoltageOver TemperatureShort circuitP.S. UndervoltageOpto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunityIntegrated cooling with temperature sensors and feedback Many options - Diode/SCR Front End, etc.
Gate Drive Board Electrical Characteristics Maximum Overtemperat
85 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
81 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
225 A
Gate Drive Board Electrical Characteristics Overtemperat
83 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
15 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Output Current
50 mA
Gate Drive Board Fault Output Supply Voltage
30 V
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
15 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
2500 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
800 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
150 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
TJ = 25ºC unless otherwise Specified
Technical Specs Brands
Applied Power Systems, Inc.
