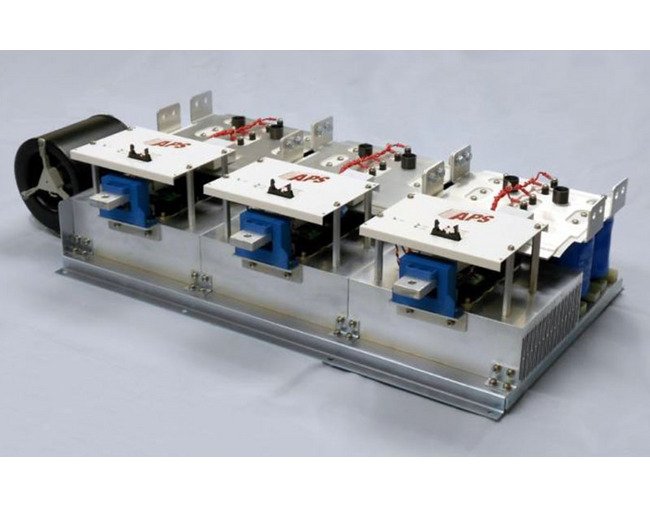

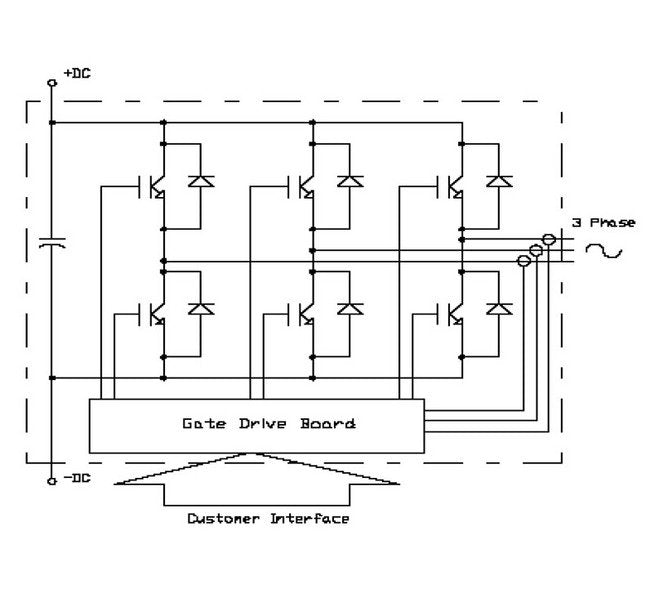

The Advanced PowerStack 600A/1200V 3-Phase IGBT Inverter is a versatile power assembly designed for various applications such as renewable energy, motor controls, and welding. Operating at frequencies up to 20kHz, it features a three-phase bridge configuration, offering options for converter input/output circuitry, cooling methods, and extensive safety features. With a built-in protection system and flexible configurations, this power stack is ideal for demanding industrial needs.
Product Specifications
Additional Information Additional Information
The IAP600T120H PowerStack provides built in protection features including: OverVoltage, UnderVoltage lockout, OverCurrent, OverTemperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAP600T120H PowerStack. Options include: a choice of converter front ends, rectifier, half or full SCR control, with or without SCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall effect current transducers.The IAP600T120H PowerStack is rated up to 800 VDC, switching frequencies up to 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
17.64 in
Compact Size Height
8.50 in
Compact Size Width
30.0 in
Features Features
Multi-Function Power AssemblyDC Bus Voltages to 800 VDCSnubber-less Operation to 650 VDCProtective circuitry with fail-safe opto-isolated fault annunciation:Over Current Short CircuitOver Voltage P.S. Under VoltageOver TemperatureOpto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunityIntegrated Cooling with temp sensors and feedbackMany options - Diode/SCR front end, etc.
Gate Drive Board Electrical Characteristics Maximum Overtemperat
101 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
97 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
900 A
Gate Drive Board Electrical Characteristics Overtemperat
99 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Output Current
50 mA
Gate Drive Board Fault Output Supply Voltage
30 V
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
15 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
4000 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Operating Temperature Top
-25 to +85 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
800 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
600 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
240 ns
Technical Specs Brands
Applied Power Systems, Inc.
