Advanced PowerStack IGBT Inverter 200A/1200V
Advanced PowerStack IGBT Inverter 200A/1200V
SKU:INT-28167d
Versatile Advanced PowerStack IGBT Inverter for renewable energy and UPS systems
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Advanced PowerStack IGBT Inverter 200A/1200V
$1,899.99
Quantity: 1
Claim Your Seller Account
Advanced PowerStack IGBT Inverter 200A/1200V
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

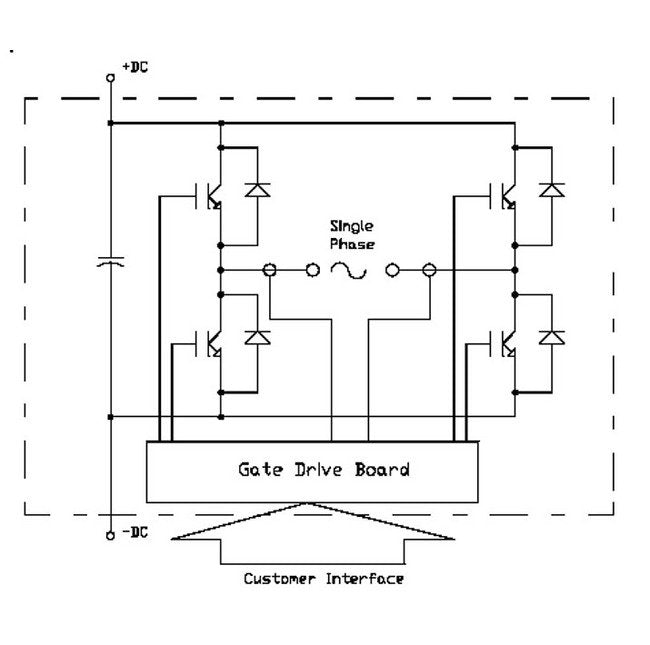

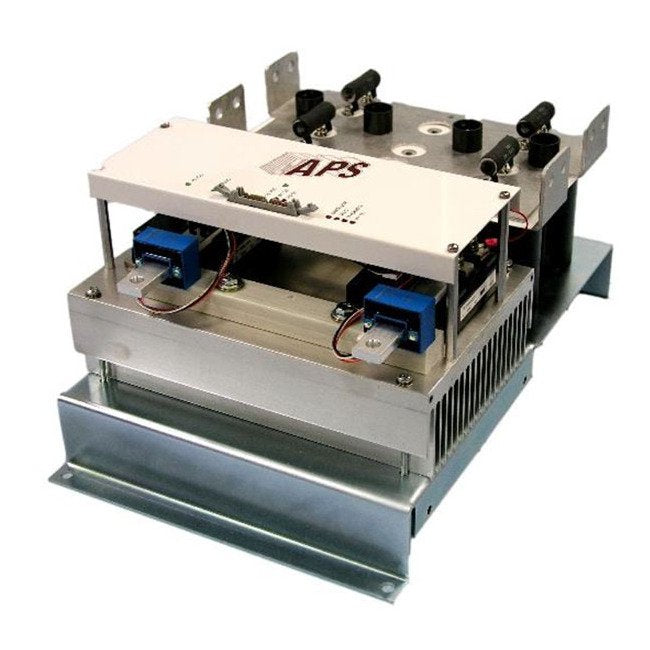

The Advanced PowerStack IGBT Inverter offers a versatile and integrated power solution suitable for applications such as renewable energy, motor controls, and UPS systems. With a capability to operate at frequencies exceeding 20 kHz, this PowerStack is configurable as a full or three-phase bridge inverter, offering options for converter input and output circuitry, cooling methods, and a range of safety features. Featuring a low inductance laminated bus structure and optically isolated gate drive interfaces, this PowerStack ensures efficient and reliable performance.
Product Specifications
Additional Information Additional Information
The IAP200B120 PowerStack provides built in protection features including: over voltage, under voltage lockout, over current, over temperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAP200B120 PowerStack. Options include: a choice of converter front ends, rectifier, half or full SCR control, with or without SCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall effect transducers.The IAP200B120 PowerStack is rated to maximum input voltages up to 850 VDC, switching frequencies to over 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
11 in
Compact Size Height
8 in
Compact Size Width
17.60 in
Features Features
Multi-Function Power AssemblyDC Bus Voltages to 850 VDCSnubber-less operation to 650 VDCProtective circuitry with fail-safe opto-isolated fault annunciation, including:Over CurrentOver VoltageOver TemperatureShort circuitP.S. UndervoltageOpto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunityIntegrated cooling with temperature sensors and feedback Many options - Diode/SCR Front End, etc.
Gate Drive Board Electrical Characteristics Maximum Overtemperat
90 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
86 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
300 A
Gate Drive Board Electrical Characteristics Overtemperat
88 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
15 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Output Current
50 mA
Gate Drive Board Fault Output Supply Voltage
30 V
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
15 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
2500 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
- 40 to +150 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
850 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
200 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
TJ = 25ºC unless otherwise Specified
Technical Specs Brands
Applied Power Systems, Inc.
